BRAND NEW

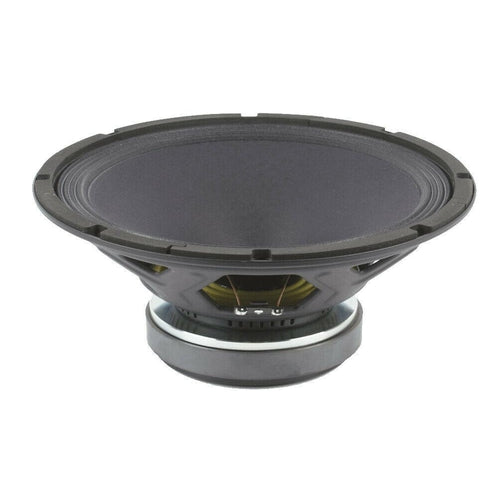

12CMV2 BEYMA
LOUDSPEAKER 8 OH
- High power handling: 640 W program power
- 2.5" CCAW wire voice coil
- High sensitivity: 96 dB (1W / 1m)
- Very linear extended response and low distortion
- Treated triple roll cloth surround
- Optimized pressed steel frame
- Ferrite magnet
- Designed for bass and midbass applications in small vented cabinets
- Nominal impedance 8 Ohm
- Power capacity 320 W AES
- Nominal diameter 300 mm 12 in
- Sensitivity96 dB 1 W/1 m ZN
- Minimum impedance 7.2 ohm

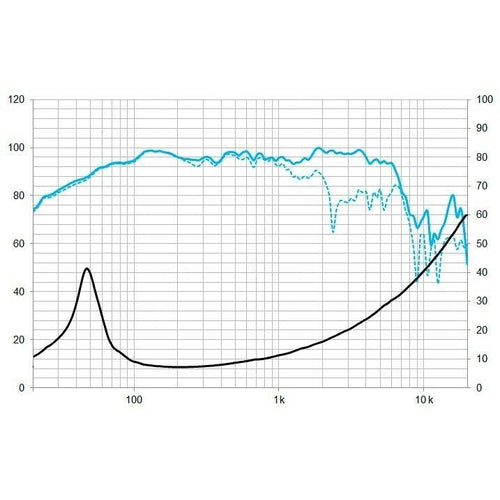

- Frequency range 50-6000 Hz
- Program power 640 W
- Recommended enclosure volume 50 l
- Voice coil diameter 63.5 mm 2.5 in
- BL factor 13.7 N/A
- Moving mass 0.054 kg
- Winding length 17 mm
- Air gap height 7 mm
- Xdamage pp 29 mm
- Fs 49 Hz
- Re 6 ohm
- Qms 3.9
- Qes 0.54
- Qts 0.47
- Vas 76 l
- Cms 193 µm / N
- Rms 4.2 kg/s
- Efficiency % 1.7
- Sd 0.053 m²
- Xmax 7 mm
- Vd 371 cm³
- Le 1 kHz 1 mH
