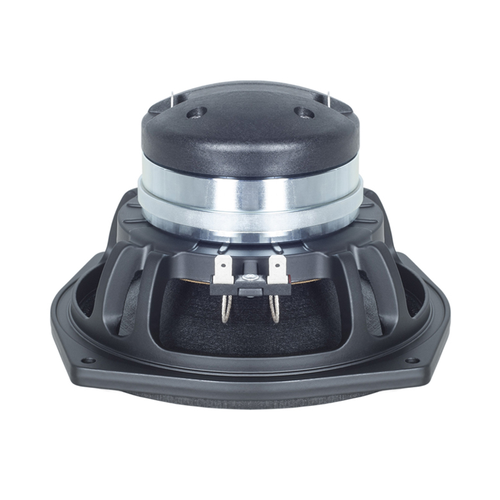

6HCX51 B AND C 6.5" Professional Neodymium Coaxial Speaker 70 x 70 8 Ohm NEW
by B AND C
Sold out
$229.00
BRAND NEW
6HCX51 B AND C
6.5" Professional Neodymium Coaxial Speaker 70 x 70 8 Ohm
- B&C's 6HCX51 6.5" coaxial loudspeaker produces generous amount of low-distortion output despite its compact form factor. The class-leading 6HCX51 offers resolution and accuracy that are suitable for professional "fill" loudspeakers, studio monitors, or high-efficiency home audio systems.
- The 6HCX51's neodymium LF/HF motor, polyester diaphragm HF driver, and FEA-optimized design produce high output and minimal distortion. In addition to the superior articulation and accuracy of coaxially aligned drivers, the 6HCX51 requires very little baffle area compared to separate LF and HF components.
- Coaxial HF driver with 1.4" voice coil, polyester diaphragm, and 70° X 70° coverage
- Neodymium ring magnet shared by LF and HF components keeps weight below 3-1/2 lbs.
- Copper-wound 2" woofer voice coil ensures good power handling
- 2.2 kHz recommended crossover point
- Use with passive or active crossover (not included)
- Dimensional category 6.5 inch
- Exit diameter compression driver 0.79 inch
- Magnet type Neodymium
- Basket material Aluminum
- Nominal impedance 8+8 ohm
- Zmin 6 ohm
- Zmin N°2 7.5 ohm
- Nominal power handling 150 W
- Power handling N°2 50 W
- Max power handling 300 W
- Max power handling N°2 100 W
- Sensitivity 92 dB
- Sensitivity N°2 105 dB
- Frequency response 90-18000 Hz
- Recommended min cutoff frequency 2200 Hz / 2200 Hz
- Voice coil diameter 2 inch
- Voice coil diameter N°2 1.46 inch
- Winding depth 13 mm
- Gap height 6 mm
- Flux density 1.1 T
- Flux density N°2 1.8 T
- Total external dimensions 162 mm / 162 mm
- Mounting diameter 146 mm
- Depth after front 92 mm
- Front thickness 12 mm
- Fs 59 Hz
- Re 5.2 ohm
- Qes 0.4
- Qms 7.5
- Qts 0.38
- Vas 5 L
- Sd 132 cm²
- Efficiency 0.8 %
- Xmax 5 mm
- Xvar 5.5 mm
- Mms 16 gr
- BL 10.9 T.m
- Le 0.8 mH
- EBP 148
- Dispersion 70°
- Diaphragm material Polyester
FREE SHIPPING
