Fortin EVO-MAZT1 Preloaded module T-Harness combo for 2013+ Mazda Push-to-Start

Flash Link Manager

DCryptor

RF Kits

Telematic & GPS Modules

Sensor Modules

External Triggers

Available Features

Advanced Features Remote Starters Operating Requirements Alarm Systems Immobilizer Bypass GPS Systems

Advanced Features

Built-in advanced features for installations:

Built-In Alarm System

OEM Remote Monitoring

Stand Alone Remote Starter

3X LOCK Remote Starter

Product Features

3 x On-board LEDs for simplified programming and diagnostics.

1 x Preloaded firmware for maximum compatibility.

1 x Factory Fit T-Harness for easy install.

1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems.

1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.

Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Compatible Vehicles

Mazda

2014 - 2017 3 (Push-to-Start Automatic)

2014 - 2017 6 (Push-to-Start Automatic)

2016 - 2017 CX-3 (Push-to-Start Automatic)

2013 - 2017 CX-5 (Push-to-Start Automatic)

2016 - 2017 CX-9 (Push-to-Start)

2016 MX-5 Miata (Push-to-Start Automatic)

Toyota

2016 - 2017 Yaris (Push-to-Start Automatic)

Product Specifications

3 x CAN-Bus controllers.

3 x General purpose controllers (J1850, Class 2, encrypted key etc.).

1 x On-board relay (SPDT).

1 x On-board relay (DPDT).

1 x Analog controller 0-12VDC @ 20mV steps (MUX).

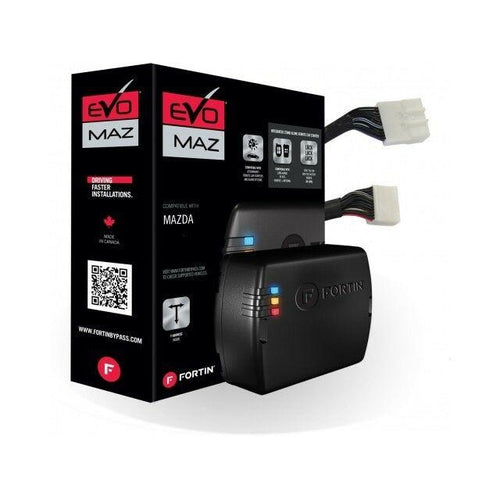

Parts included

1 x EVO-ALL control module (firmware preloaded).

1 x Warning label.

1 x 20 Pin general purpose harness.

1 x 4 Pin Fortin 2-way data-link harness.

1 x Factory Fit T-Harness.

THIS PRODUCT REQUIRES PROFESSIONAL INSTALLATION
