12FHX76 B AND C

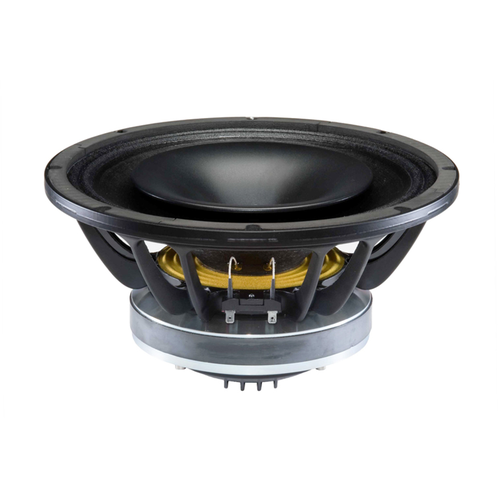

12" Professional Coaxial Speaker 60 x 40 8 Ohm
- B&C's 12FHX76 12" coaxial loudspeaker produces generous amount of low-distortion output despite its compact form factor. The 12FHX76 offers resolution and accuracy that are suitable for professional "fill" loudspeakers, stage monitor wedges, studio monitors, or high-efficiency home audio systems. A built-in 60° x 40° horn offers useful pattern control, particularly handy when trying to limit sound energy that is directed at floors and ceilings, for example.
- The 12FHX76's large-format HF compression driver permits an exceptionally low crossover point of 1,200 Hz, which offers a more consistent directivity transition from LF cone to HF horn. Power handling is 700 watts continuous program; combined with the driver's high efficiency, this results in very good maximum output.
- Coaxial HF driver with 3" voice coil, titanium diaphragm, and 60° x 40° nominal coverage
- High-energy ferrite magnet shared by LF and HF components
- Woofer's copper-wound 3" voice coil ensures good power handling
- Modified exponential horn flare increases HF acoustic loading and shapes the coverage pattern
- 1.2 kHz recommended crossover point
- Use with passive or active crossover (not included)
- Nominal Diameter 12"
- Power Handling (RMS) 350 Watts
- Power Handling (max) 700 Watts
- Impedance 8 ohms
- Frequency Response 45 to 18,000 Hz
- Sensitivity 98 dB 1W/1m
- Voice Coil Diameter 3
- Resonant Frequency (Fs) 48 Hz
- DC Resistance (Re) 5 ohms
- Voice Coil Inductance (Le) 1.6 mH
- Mechanical Q (Qms) 5.4
- Electromagnetic Q (Qes) 0.36
- Total Q (Qts) 0.33
- Compliance Equivalent Volume (Vas) 3.1 ft.³
- BL Product (BL) 14.4 Tm
- Diaphragm Mass Inc. Airload (Mms) 47g
- Maximum Linear Excursion (Xmax) 6.5 mm
- Surface Area of Cone (Sd) 522 cm²
- Cone Material Coated Paper
- Voice Coil Wire Material Copper
- Magnet Material Ferrite
