BRAND NEW
12NDL76 B AND C

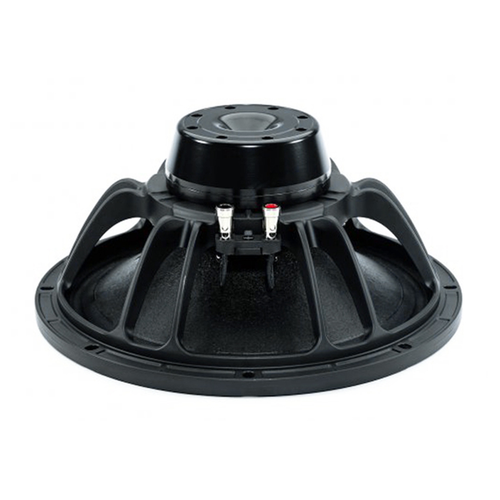

12" Neodymium Woofer Speaker Driver
- The B&C Speakers 12NDL76 12" neodymium driver delivers great results when used for high-output midrange applications, in direct radiator or horn loaded configurations. It also works well as the woofer in 2-way speaker systems.
- The 12NDL76 features good power handling and Xmax capabilities, thanks to an advanced neodymium motor and carefully optimized suspension.
- Smooth response and excellent efficiency
- Lightweight but powerful neodymium magnet
- Ventilated voice coil gap reduces power compression
- 800 watt continuous program power
- 3" aluminum voice coil
- 100 dB 1w/1m sensitivity
- Dimensional category 12.5 inch
- Front Shape Cylindrical
- Magnet type Neodymium
- Basket material Aluminum
- Nominal impedance 8 ohm
- Zmin 6.2 ohm
- Nominal power handling 400 W
- Max power handling 800 W
- Sensitivity 100 dB
- Frequency response 50-2000 Hz
- Voice coil diameter 3 inch
- External diameter 315 mm
- Mounting diameter 283 mm
- Depth after front 127 mm
- Front thickness 14 mm
- Fs 50 Hz
- Re 10.2 ohm
- Qes 0.21
- Qms 4.2
- Qts 0.2
- Vas 73 L
- Sd 522 cm²
- Efficiency 4.3 %
- Xmax 7 mm
- Xvar 6.5 mm
- Mms 53 gr
- BL 20.1 T.m
- Le 1 mH
- EBP 238
- Cone material Paper
- Form suspension Double roll
- Form membrane Exponential
- Spider Single
- Recommended load 42 L (tuned ar 65 Hz)
