BRAND NEW
12NW76 B AND C

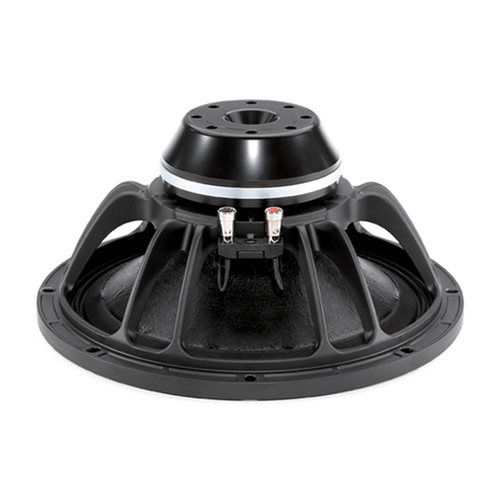

12" Neodymium Woofer
- The B&C Speakers 12NW76 12" neodymium driver offers great fidelity, smooth response, and outstanding efficiency in a well-engineered professional package. The 12NW76's very high power handling and Xmax capabilities make it suitable for any pro audio speaker enclosure, including horn loaded.
- 1000 W continuous program power capacity
- 76 mm (3 in) copper voice coil
- 40 - 2000 Hz response
- 98.5 dB sensitivity
- Neodymium ring magnet assembly
- Aluminium demodulating ring allows a very low distortion figure
- Ventilated voice coil gap for reduced power compression
- Shape Cylindrical
- Product type Cone driver
- Brand B&C Speakers
- Dimensional category 12.5 inch
- Front Shape Cylindrical
- Magnet type Neodymium
- Basket material Aluminium
- Nominal impedance 8 ohm
- Zmin 6.9 ohm
- Nominal power handling 500 W
- Max power handling 1000 W
- Sensitivity 98.5 dB
- Frequency response 40-2000 Hz
- Voice coil diameter 3 inch
- Fil bobine Copper
- External diameter 315 mm
- Mounting diameter 283 mm
- Depth after front 133 mm
- Front thickness 14 mm
- Fs 40 Hz
- Re 5.3 ohm
- Qes 0.17
- Qms 3.7
- Qts 0.16
- Vas 76 L
- Sd 522 cm²
- Efficiency 2.8 %
- Xmax 8 mm
- Xvar 10 mm
- Mms 77 gr
- BL 25.5 T.m
- Le 1.25 mH
- EBP 235
- Form suspension Triple roll
- Form membrane Exponential
- Spider Single
- Recommended load 50 L (tuned ar 60 Hz)
