15NDL76 B AND C

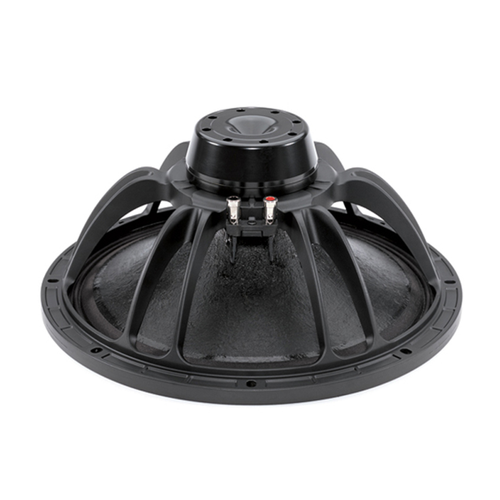

15" Neodymium Woofer
- The B&C Speakers 15NDL76 15" woofer incorporates a well-ventilated neodymium motor, 3" diameter copper voice coil wound inside-outside on a fiberglass former, die cast frame, and optimized moving parts. This combination, benefiting from competent and advanced engineering, results in a fully professional loudspeaker driver that delivers great results in direct radiating and horn loaded pro PA speaker systems.
- 3" copper voice coil wound inside-outside to resist high temperatures
- Neodymium magnet is light but powerful
- Ventilated voice coil gap reduces power compression
- Like all B&C speakers, designed and engineered in Italy
- 1,000 watt continuous program power
- 99 dB 1w/1m sensitivity
- Nominal Diameter 15"
- Power Handling (RMS) 500 Watts
- Power Handling (max) 1,000 Watts
- Impedance 8 ohms
- Frequency Response 40 to 2,000 Hz
- Sensitivity 99 dB 1W/1m
- Voice Coil Diameter 3"
- Resonant Frequency (Fs) 37 Hz
- DC Resistance (Re) 5.3 ohms
- Voice Coil Inductance (Le) 1.5 mH
- Mechanical Q (Qms) 4.5
- Electromagnetic Q (Qes) 0.24
- Total Q (Qts) 0.22
- Compliance Equivalent Volume (Vas) 6.8 ft.³
- BL Product (BL) 22.5 Tm
- Diaphragm Mass Inc. Airload (Mms) 96g
- Maximum Linear Excursion (Xmax) 7 mm
- Surface Area of Cone (Sd) 855 cm²
- Cone Material Paper
- Surround Material Cloth
- Voice Coil Wire Material Copper
- Voice Coil Former Fiberglass
- Basket / Frame Material Cast Aluminum
- Magnet Material Neodymium
- Overall Outside Diameter 15.5"
- Baffle Cutout Diameter 13.9"
- Depth 6.7" Bolt
- Circle Diameter 14.7"
- Sealed Volume 0.45 ft.³
- Sealed F3 144 Hz
- Vented Volume 0.97 ft.³
- Vented F3 94 Hz
- # Mounting Holes 8
