B AND C

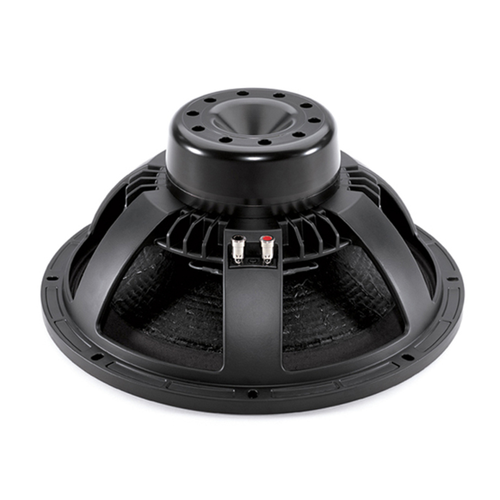

15NW100 B AND C 15" Neodymium Subwoofer Speaker Driver NEW

15NW100 B AND C 15" Neodymium Subwoofer Speaker Driver NEW

$435.50
$435.50
Sale Sold out
BRAND NEW

15NW100 B AND C

15" Neodymium Subwoofer Speaker Driver

  • The B&C 15NW100 is an advanced, lightweight subwoofer driver featuring 1,000 watts RMS power handling, a 1" long/4" diameter copper voice coil with very high thermal capability, and a ventilated neodymium magnet assembly that provides low power compression.
  • Nominal Diameter 15"
  • Power Handling (RMS) 1,000 Watts
  • Power Handling (max) 2,000 Watts
  • Impedance 8 ohms
  • Frequency Response 35 to 1,500 Hz
  • Sensitivity 97 dB 1W/1m
  • Voice Coil Diameter 4"
  • Resonant Frequency (Fs) 33 Hz
  • DC Resistance (Re) 5.1 ohms
  • Voice Coil Inductance (Le) 1.9 mH
  • Mechanical Q (Qms) 4.3
  • Electromagnetic Q (Qes) 0.23
  • Total Q (Qts) 0.22
  • Compliance Equivalent Volume (Vas) 4.9 ft.³
  • BL Product (BL) 28 Tm
  • Diaphragm Mass Inc. Airload (Mms)173g
  • Maximum Linear Excursion (Xmax) 9 mm
  • Surface Area of Cone (Sd) 855 cm²
  • Cone Material Paper
  • Surround Material Cloth
  • Voice Coil Wire Material Copper
  • Voice Coil Former Fiberglass
  • Magnet Material Neodymium
  • Overall Outside Diameter 15.5"
  • Baffle Cutout Diameter 13.9"
  • Depth 7.1"
  • Bolt Circle Diameter 14.7"
  • # Mounting Holes 8
  • Sealed Volume 0.32 ft.³
  • Sealed F3 128 Hz
  • Vented Volume 0.7 ft.³
  • Vented F3 84 Hz

FREE SHIPPING
