18NLW4000 18 Sound 3200W 18" Woofer NEW

18NLW4000 18 Sound 3200W 18" Woofer NEW

$699.00
$699.00
Sale Sold out
BRAND NEW

18NLW4000 18 Sound

3200W 18" Woofer

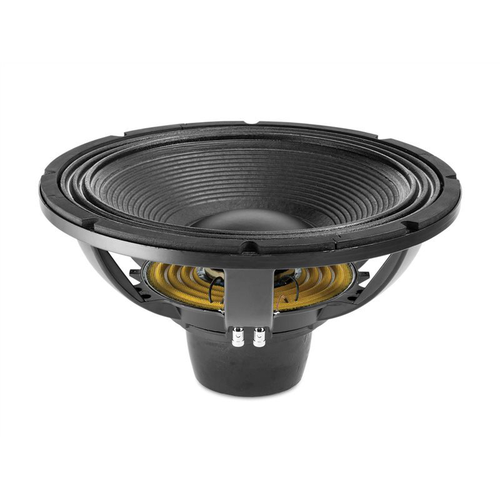

  • The 18NLW4000 is an 18" (460 mm) extended low frequency loudspeaker, designed for use in vented enclosures. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results we recommend amplifiers able to deliver 3200 Watt program power.
  • The 18NLW4000 features a unique motor featuring a high grade neodymium magnet assembly in a structure optimized for thermal and magnetic efficiency. 18NLW4000 features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range.
  • The 100mm (4 in) state-of-the-art voice-coil utilizing Interleaved Sandwich Voice coil (ISV) technology, provides high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor.
  • 94 dB SPL 1W / 1m average sensitivity
  • 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
  • 3200 W program power handling
  • 70 mm (2,76 in) peak to peak excursion
  • Composite reinforced straight ribbed cone
  • Optimized high grade neodymium magnet assembly
  • Recommended for subwoofer usage in compact vented enclosures
  • Nominal Diameter 462mm
  • Rated Impedance 8 Ohm
  • AES Power 1600W
  • Program Power 3200W
  • Peak Power 7200W
  • Sensitivity 95 dB
  • Frequency Range 30 - 1000 Hz
  • Power Compression -10dB TBD
  • Power Compression -3dB TBD
  • Power Compression Full Power TBD
  • Max Recomm.Frequency 250Hz
  • Recomm. Enclosure Volume 130 - 350 lt (4.59 - 12.37 cuft)
  • Minimum Impedance 6,1Ohmat 25°C
  • Max Peak To Peak Excursion 70mm(2.76 in)
  • Voice Coil Diameter 100mm(4 in)
  • Voice Coil Winding Material Copper wire
  • Suspension Triple roll, Heavy polycotton
  • Cone Curved ribbed fiber loaded cellulose
  • Fs 34 Hz
  • Re 5,1Ohm
  • Sd 0,113 sq.m(175,15 sq.in)
  • Qms 6,0
  • Qes 0,34
  • Qts 0,33
  • Vas 134 lt. (4.7 cu.ft)
  • Mms 290 gr. (0,64 lb)
  • BL 30,5 Tm
  • Linear Mathematical Xmax ± 14.5mm(± 0,57 in)
  • Le (1kHz) 2,87mH
  • Ref. Efficiency 1W@1m(halfspace) 93.8 dB
  • Overall diameter 462mm(18,19 in)
  • N. ofmounting holes and bolt 8
  • Mounting holes diameter 8,5mm(0,33 in)
  • Bolt circle diameter 440mm(17,32 in)
  • Front mount baffle cutout ø 416mm(16,38 in)
  • Rear mount baffle cutout ø 422mm(16,61 in)
  • Total depth 227mm(8,93 in)
  • Flange and gasket thickness 26mm(1,02 in)
