• 18NW100 B AND C 18" Neodymium Subwoofer Speaker Driver NEW - TuracellUSA
1 1

B AND C

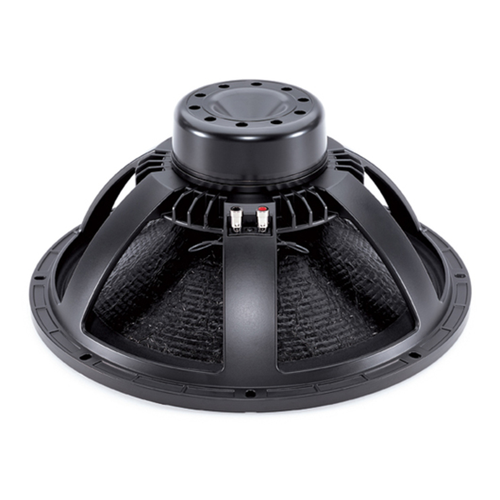

18NW100 B AND C 18" Neodymium Subwoofer Speaker Driver NEW

18NW100 B AND C 18" Neodymium Subwoofer Speaker Driver NEW

$399.00
$399.00
Sale Sold out
BRAND NEW

18NW100 B AND C

18" Neodymium Subwoofer Speaker Driver

  • The B&C 18NW100 18" speaker advanced, lightweight subwoofer driver features 1,200 watts RMS power handling, a 1" long/4" diameter copper voice coil with very high thermal capability, and a ventilated neodymium magnet assembly that provides low power compression.
  • Lightweight but powerful FEA-optimized neodymium magnet
  • High BL factor and Xmax for outstanding LF output
  • Ventilated voice coil gap reduces power compression
  • Double silicone spider
  • 1,200 watt continuous program power
  • 4" copper voice coil on fiberglass former
  • 98 dB 1w/1m sensitivity
  • Nominal Diameter 18"
  • Power Handling (RMS) 1,200 Watts
  • Power Handling (max) 2400 Watts
  • Impedance 8 ohms
  • Frequency Response 35 to 1,000 Hz
  • Sensitivity 98 dB 1W/1m
  • Voice Coil Diameter 4"
  • Resonant Frequency (Fs) 31 Hz
  • DC Resistance (Re) 5.1 ohms
  • Voice Coil Inductance (Le) 1.7 mH
  • Mechanical Q (Qms) 4.2
  • Electromagnetic Q (Qes) 0.27
  • Total Q (Qts) 0.26
  • Compliance Equivalent Volume (Vas) 8.9 ft.³
  • BL Product (BL) 28 Tm
  • Diaphragm Mass Inc. Airload (Mms) 211g
  • Maximum Linear Excursion (Xmax) 9 mm
  • Surface Area of Cone (Sd) 1210 cm²
  • Cone Material Paper
  • Surround Material Cloth
  • Voice Coil Wire Material Copper
  • Voice Coil Former Fiberglass
  • Magnet Material Neodymium
  • Overall Outside Diameter 18"
  • Baffle Cutout Diameter 16.6"
  • Depth8.2"Bolt Circle Diameter 17.3"
  • # Mounting Holes 8
