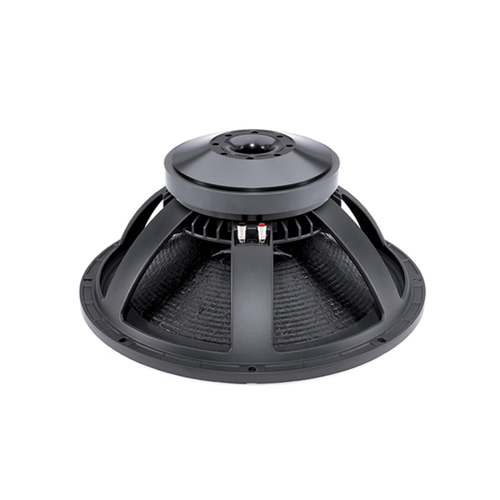

18TBX100 B AND C 18-in Woofer w/8 Ohms Impedance & 2400 Watts Continuous Power
18TBX100 B AND C 18-in Woofer w/8 Ohms Impedance & 2400 Watts Continuous Power
Regular price
$395.50
Regular price
Sale price
$395.50
Unit price
/
per
Couldn't load pickup availability
BRAND NEW
18TBX100 B AND C
18-in Woofer w/8 Ohms Impedance & 2400 Watts Continuous Power
- The industry-standard B&C Speakers 18TBX100 features a 1" long/4" diameter copper wire voice coil with high thermal capability, and a ventilated magnet assembly, both of which contribute to low power compression. A very low distortion figure is obtained using a double spider design and dual demodulation rings in the magnetic path.
- The 18TBX100 is fortified by a proprietary water-proof cone treatment that facilitates safe use in adverse climatic conditions. This benchmark pro subwoofer driver is found in many famous manufacturers' well-established loudspeaker enclosures.
- Dual demodulation rings in the magnet system
- 4" copper wire voice coil wound inside-outside on fiberglass former
- Double spider suspension system maintains linearity
- Very low distortion—nothing but deep, clean bass
- Nominal Diameter 18"
- Power Handling (RMS) 1,200 Watts
- Power Handling (max) 2400 Watts
- Impedance 8 ohms
- Frequency Response 35 to 1,000 Hz
- Sensitivity 97 dB 2.83V/1m
- Voice Coil Diameter 4"
- Resonant Frequency (Fs) 34 Hz
- DC Resistance (Re) 5.1 ohms
- Voice Coil Inductance (Le) 1.6 mH
- Mechanical Q (Qms) 7.2
- Electromagnetic Q (Qes) 0.37
- Total Q (Qts) 0.35
- Compliance Equivalent Volume (Vas) 7.5 ft.³
- BL Product (BL) 25.5 Tm
- Diaphragm Mass Inc. Airload (Mms) 209g
- Maximum Linear Excursion (Xmax) 9 mm
- Surface Area of Cone (Sd) 1210 cm²
- Cone Material Paper
- Surround Material Cloth
- Voice Coil Wire Material Copper
- Voice Coil Former Fiberglass
- Magnet Material Ferrite
- Overall Outside Diameter 18"
- Baffle Cutout Diameter 16.6"
- Depth 8.2"
- Bolt Circle Diameter 17.3"
- # Mounting Holes 8
