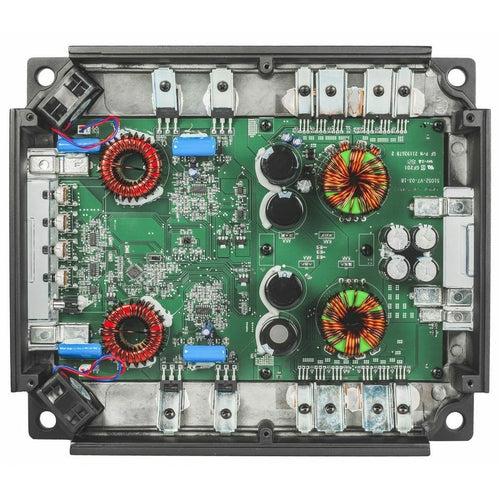

3K1 BANDA ELECTRA One Channel 3000 Watts Max @ 1 Ohm Car Audio Mono Amplifier
3K1 BANDA ELECTRA One Channel 3000 Watts Max @ 1 Ohm Car Audio Mono Amplifier
Regular price
$319.00
Regular price
Sale price
$319.00
Unit price
/
per
BRAND NEW
3K1 ELECTRA One Channel 3000 Watts Max @
1 Ohm Car Audio Mono Amplifier/BASS
Amplifier Class - D
Total Power 14,4 @ 1 Ohm - 3600 WRMS
Total Power 14,4 @ 2 Ohms - 2400 WRMS
Total Power 12,6 @ 1 Ohm - 3000 WRMS
Total Power 12,6 @ 2 Ohms -1800 WRMS
Efficiency @ 2 Ohms -82%
Efficiency @ 1 Ohm - 75%
Input Voltage - 9 – 15V
Input Impedance - 100K Ohms
THD+Noise - <1%
Input Sensitivity -110mV – 8V
SNR - 82dB
Frequency Response (Key OFF) - 5 to 500Hz (-3dBs)
Frequency Response - 20 to 500Hz (-3dBs)
Bass Bosst @ 45Hz
Variable 0 to +18dBs
HPF (Subsonic) -20 to 80Hz @ 12dB/octave Linkwitz-Riley
LPF (Crossover) - 80 to 500Hz @ 12dB/octave Linkwitz-Riley
Recommended Fuse -150 A
Current at Rest - 2 A
Average Current Draw (Sinusoidal) - 320 A
Average Current Draw (Music) -160 A
Power Wire Gauge (min. Recommended)
21mm / 4 AWG
Speaker Wire Gauge (min. Recommended)
2 x 4mm / 2 x 11 AWG
Weight (Lb) -10.8
Height (in) -2.4
Width (in) -10.6
Depth (in) -12.3
BRAND NEW
FREE GROUND SHIPPING
