4 - AUTOTEK ATS65C 6.5" 1200 Watt Car Audio Component Car Speakers NEW! (2 pair)
4 - AUTOTEK ATS65C 6.5" 1200 Watt Car Audio Component Car Speakers NEW! (2 pair)
AUTOTEK ATS65C
ATS series speakers are available in the most popular sizes to fit into factory speaker locations with very little or no modification.
They are perfect for the first car or a full restoration. They are designed to easily disappear into the stock speaker locations and behind
factory grills but, the ATS speakers deliver huge sound. The Autotek full-range speakers are packed with technology to deliver great music,
no matter what is loaded into you CD player or mobile device. Look closely for durable moisture-resistant foam speaker surrounds,
bass enhancing polypropylene cones, and super output neo-Mylar soft dome Tweeters. ATS speakers
will not bust the bank either which means great sound at a great price.
Specifications
·
RMS POWER HANDLING(CEA426B)
150 watts
·
PEAK POWER HANDLING (CEA426B)
300 watts
·
SPEAKER IMPEDANCE
4 Ω
· FREQUENCY RESPONSE +/- 10DB
·
FREQUENCY RESPONSE +/- 3DB
55Hz-20kHz
·
SENSITIVITY (1 WATT/1 METER)
88dB
·
CROSSOVER POINT
2K Hz
·
CROSSOVER SLOPE
12dB
·
MOUNTING DIAMETER/CUT OUT
5.59
·
OUTSIDE DIAMETER
7.01
·
MOUNTING DEPTH/CHASSIS DEPTH
2.12
·
PRODUCT DIMENSIONS
16.63 X 7.88 X 4.38 in
42.2 x 20.0 x 11.1 cm
·
PRODUCT WEIGHT
4.65 lbs (2.1kg)
Features & Benefits
·
TWEETER DOME MATERIAL: Neo-Mylar Soft Dome
Tweeter
Impact Resistant Tweeter Elements
·
SURROUND: UV Resistant Rubber
Surround
Moisture Resistant Rubber Surround with high Mid-Bass Impact
·
CONE: Silver
Alpha-Cellulose Polypropylene Cones - Treated Pressed Paper Cone
Produces musical midrange and bass tones while remaining light weight
·
SURROUND / CONE COUPLING: High Temperature
Adhesive
The cone/surround connection utilizes a high temp adhesive which assure the
cone and surround do not separate in high power uses or extremes of weather
·
GASKET: Textured ABS
Assures a ridged linear seal to the mounting surface
·
TINSEL LEADS: Braided
Highly conductive while remain flexible during high power applications
·
VOICE COIL: Pure Copper
Creates strong magnetic field with a very thin extrusion
·
VOICE COIL FORMER: Kapton
Lightweight and efficiently dissipates heat
·
SPIDER: Epoxy infused
Natural Fiber
Natural fiber allows flexibility while the epoxy which gives strength during
the manufacturing process.
·
COOLING SYSTEM: Over-Coil
Air is exchanged over the voice coil through the spider
·

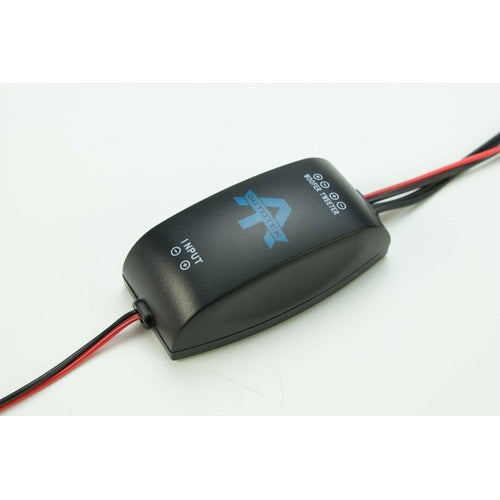

CROSSOVER TYPE: Passive
Butterworth
Smooth transition of frequencies from midrange/midbass to the tweeter element
·
CROSSOVER SPECIAL: External 12dB
Premium capacitors help create a smooth component system with exacting
crossover points
·
FRAME: Anti-Resonant
Stamped Steel Frame
Very strong with minimal harmonics or distortions from flex or ringing
·
MOTOR: Ferrite
Magnet
Creates a strong magnetic field while remaining small enough to fit nearly
every application
·
CONNECTORS: Spade
Use spade connectors or solder direct for the best connection
·
TWEETER HARDWARE: Included
Several mounting options are included to maximize installation placement
·
GRILLS: Yes
Protects the speaker from accidental damage. Not used if speaker is mounted
behind vehicle panel
·
TWEETER MATERIAL: Neo-Mylar Soft
Dome
Great sound quality and increased reliability
·
TWEETER SIZE: 1 inch
Clear highs while handling plenty of power without sounding harsh
·
TWEETER SURROUND MATERIAL: Kapton
Lightweight and efficiently dissipates heat
·
MOUNTING HARDWARE OPTIONS: Included for
tweeter
Several mounting options are included to maximize installation placement
Customers will receive 2 orders per purchase (4 speakers)
