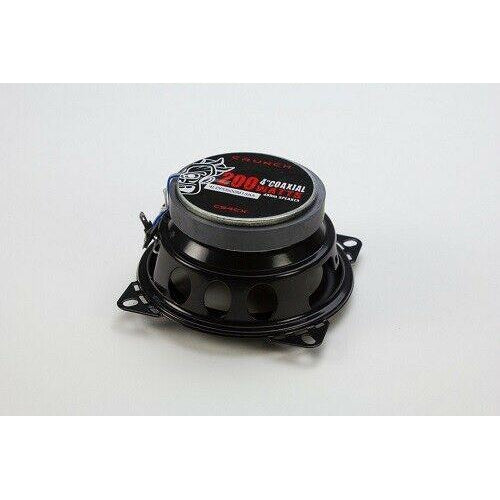

4 Crunch CS4CX 200 Watts 4" Inches 2-Way CS Series Coaxial Car Audio Speakers
4 Crunch CS4CX 200 Watts 4" Inches 2-Way CS Series Coaxial Car Audio Speakers
Description
Crunch 4 Inch 2 way 200 watt speaker utilizing Neo Mylar Soft
Dome Tweeters and Silver Alpha-Cellulose Poly Cones
Category: CS
SKU: 806576222163
Part #: CS4CX
Specifications
·
RMS POWER HANDLING(CEA426B)
100 watts
·
PEAK POWER HANDLING (CEA426B)
200 watts
·
SPEAKER IMPEDANCE
4 Ω
· FREQUENCY RESPONSE +/- 10DB
·
FREQUENCY RESPONSE +/- 3DB
55 Hz - 19 kHz
·
SENSITIVITY (1 WATT/1 METER)
88dB
·
CROSSOVER POINT
6K Hz
·
CROSSOVER SLOPE
12dB
·
MOUNTING DIAMETER/CUT OUT
3.69
·
OUTSIDE DIAMETER
5.39
·
MOUNTING DEPTH/CHASSIS DEPTH
3
·
PRODUCT DIMENSIONS
12.06 x 6.19 x 3.13 in
30.6 x 15.7 x 7.95 cm
·
PRODUCT WEIGHT
2.2 lbs (1 kg)
Features & Benefits
· TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
· SURROUND: UV Resistant Rubber Surround Moisture Resistant Rubber Surround with high Mid-Bass Impact
· CONE: Silver Alpha-Cellulose Poly Cones Produces musical midrange and bass tones while remaining light weight
· SURROUND / CONE COUPLING: High Temperature Adhesive The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather
· GASKET: Textured ABS Assures a ridged linear seal to the mounting surface
· TINSEL LEADS: Braided Highly conductive while remain flexible during high power applications
· VOICE COIL: Pure Copper Creates strong magnetic field with a very thin extrusion
· VOICE COIL FORMER: Kapton Lightweight and efficiently dissipates heat
· SPIDER: Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
· COOLING SYSTEM: Over-Coil Air is exchanged over the voice coil through the spider
· CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element
· CROSSOVER SPECIAL: 6dB Internal Integrated into the design to assure smooth midrange to tweeter frequency transitions
· FRAME: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing
· MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application
· CONNECTORS: Spade Use spade connectors or solder direct for the best connection
· GRILLS: No. These speakers are typically installed behind an OEM panel
· TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability
· TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh
· TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat
