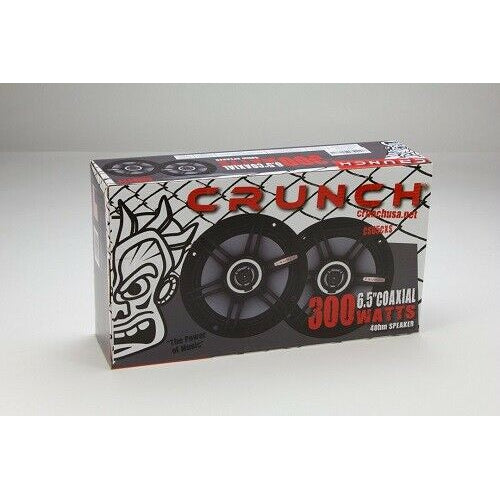

4 CRUNCH CS65CXS 6.5-INCH 6.5" 2-WAY CAR AUDIO SHALLOW MOUNT COAXIAL SPEAKERS

Description
Crunch 6.5 Inch 2 way 300 watt SHALLOW MOUNT speaker utilizing Neo Mylar Soft Dome Tweeters and Silver Alpha-Cellulose Poly Cones

Category: CS
SKU: 806576222156
Part #: CS65CXS

Specifications

RMS POWER HANDLING(CEA426B)
150 watts

PEAK POWER HANDLING (CEA426B)
300 watts

SPEAKER IMPEDANCE
4 Ω

FREQUENCY RESPONSE +/- 10DB

FREQUENCY RESPONSE +/- 3DB
60Hz-20kHz

SENSITIVITY (1 WATT/1 METER)
88dB

CROSSOVER POINT
4K Hz

CROSSOVER SLOPE
12dB

MOUNTING DIAMETER/CUT OUT
5.59

OUTSIDE DIAMETER
7.01

MOUNTING DEPTH/CHASSIS DEPTH
1.65

PRODUCT DIMENSIONS
14.88 x 8.5 x 4.13 in
37.7 x 21.5 x 10.4 cm

PRODUCT WEIGHT
3.4 lbs (1.5 kg)

Features & Benefits

TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter
Impact Resistant Tweeter Elements

SURROUND: UV Resistant Rubber Surround
Moisture Resistant Rubber Surround with high Mid-Bass Impact

CONE: Silver Alpha-Cellulose Poly Cones
Produces musical midrange and bass tones while remaining light weight

SURROUND / CONE COUPLING: High Temperature Adhesive
The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather

· GASKET: Textured ABS
Assures a ridged linear seal to the mounting surface

· TINSEL LEADS: Braided
Highly conductive while remain flexible during high power applications

· VOICE COIL: Pure Copper
Creates strong magnetic field with a very thin extrusion

· VOICE COIL FORMER: Kapton
Lightweight and efficiently dissipates heat

· SPIDER: Epoxy infused Natural Fiber
Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.

· COOLING SYSTEM: Over-Coil
Air is exchanged over the voice coil through the spider

· CROSSOVER TYPE: Passive Butterworth
Smooth transition of frequencies from midrange/midbass to the tweeter element

· CROSSOVER SPECIAL: 6dB Internal
Integrated into the design to assure smooth midrange to tweeter frequency transitions

· FRAME: Anti-Resonant Stamped Steel Basket
Very strong with minimal harmonics or distortions from flex or ringing

· MOTOR: Ferrite Magnet
Creates a strong magnetic field while remaining small enough to fit nearly every application

· CONNECTORS: Spade
Use spade connectors or solder direct for the best connection

· GRILLS: Yes
Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel

· TWEETER MATERIAL: Neo-Mylar Soft Dome
Great sound quality and increased reliability

· TWEETER SIZE: 1 inch
Clear highs while handling plenty of power without sound harsh

· TWEETER SURROUND MATERIAL: Kapton
Lightweight and efficiently dissipates heat
