Hifonics

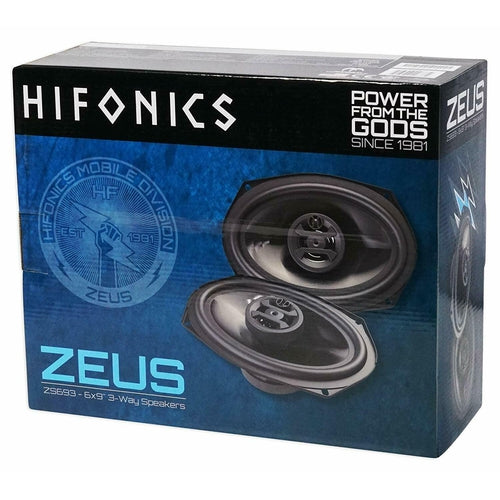

4 Hifonics ZS693 6x9" 1600 Watt Car Audio Coaxial Speakers FAST SHIPPING
4 Hifonics ZS693 6x9" 1600 Watt Car Audio Coaxial Speakers FAST SHIPPING
4 X Hifonics ZS693 6x9" 800 Watt Car Audio Coaxial Speakers
HIGHLIGHTS:
Pair Hifonics ZS693 6x9" 800 Watt Car Audio Speakers. Tweeter Dome Material: Neo-Mylar Soft Dome Tweeter - Impact Resistant Tweeter Elements. Surround:Rubber - Moisture Resistant Rubber Surround with high Mid-Bass Impact. Cone:Alpha-Cellulose Cones - Light weight for speed and very rigid for deep bass.
Surround / Cone Coupling:High Temperature Adhesive - Special adhesive is chosen to create a permanent bond between the cone and the surround. Tinsel Leads:Braided - Highly conductive while remain flexible during high power applications. Voice Coil:Pure Copper - Creates strong magnetic field with a very thin extrusion.
Voice Coil Former:Kapton - Lightweight and efficiently dissipates heat. Spider:Epoxy infused Natural Fiber - Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process. Cooling System: Overcoil - Air is exchanged over the voice coil through the spider.
Specifications: RMS Power Handling (CEA426B): 60 Watts (Per Speaker) / 120 Watts (Per Pair). Maxx Power: 400 Watts (Per Speaker) / 800 Watts (Per Pair). Speaker Impedance: 4 Ω. Frequency Response +/- 3dB: 46Hz-20kHz. Sensitivity (1 watt/1 meter): 88 db.
Crossover Point: 1K Hz + 3K. Crossover Slope: 12dB. Mounting Diameter/Cut Out: 8.64 x 5.98. Outside Diameter: 10.35 x 7.20. Mounting Depth/Chassis Depth: 3.35. Dimensions: 14.25 x 11.75 x 5.5 in. Weight: 6.15 lbs
Features:
Pair Hifonics ZS693 6x9" 800 Watt Car Audio Speakers
Tweeter Dome Material: Neo-Mylar Soft Dome Tweeter - Impact
Resistant Tweeter Elements
Surround:Rubber - Moisture Resistant Rubber Surround with
high Mid-Bass Impact
Cone:Alpha-Cellulose Cones - Light weight for speed and very
rigid for deep bass
Tinsel Leads:Braided - Highly conductive while remain
flexible during high power applications
Voice Coil:Pure Copper - Creates strong magnetic field with a
very thin extrusion
Voice Coil Former:Kapton - Lightweight and efficiently
dissipates heat
Spider:Epoxy infused Natural Fiber - Natural fiber allows
flexibility while the epoxy which gives strength during the manufacturing process.
Cooling System: Overcoil - Air is exchanged over the voice
coil through the spider
Crossover Type: Passive Butterworth - Smooth transition of
frequencies from midrange/midbass to the tweeter element
Frame Type: Anti-Resonant Stamped Steel Basket - Very strong
with minimal harmonics or distortions from flex or ringing
Motor: Ferrite Magnet - Creates a strong magnetic field while
remaining small enough to fit nearly every application
Connectors: Spade - Use spade connectors or solder direct for
the best connection
Grills: Yes - Protects the speaker from accidental damage.
Not used if speaker is mounted behind vehicle panel
Tweeter Material: Neo-Mylar Soft Dome - Great sound quality
and increased reliability
Tweeter Size: 1 inch - Clear highs while handling plenty of
power without sound harsh
Tweeter Surround Material: Kapton - Lightweight and
efficiently dissipates heat
Specifications:
RMS Power Handling
(CEA426B): 60 Watts (Per Speaker) / 120 Watts (Per Pair)
Maxx Power: 400
Watts (Per Speaker) / 800 Watts (Per Pair)
Speaker Impedance:
4 Ω
Frequency Response
+/- 3dB: 46Hz-20kHz
Sensitivity (1
watt/1 meter): 88 db
Crossover Point: 1K
Hz + 3K
Crossover Slope:
12dB
Mounting
Diameter/Cut Out: 8.64 x 5.98
Outside Diameter:
10.35 x 7.20
Mounting
Depth/Chassis Depth: 3.35
Dimensions: 14.25 x
11.75 x 5.5 in
Weight: 6.15 lbs
BUYERS WILL RECEIVE 2 ORDERS PER PURCHASE (4 SPEAKERS)
