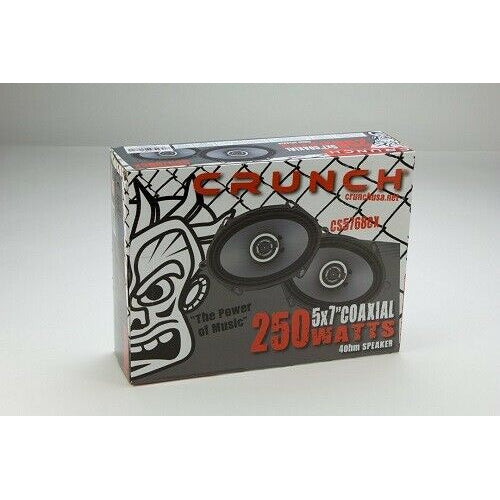

4 X CRUNCH CS5768CX 5" x 7" OR 6" x 8" 2-WAY CAR AUDIO COAXIAL SPEAKERS NEW!

4 X CRUNCH CS5768CX 5" x 7" OR 6" x 8" 2-WAY CAR AUDIO COAXIAL SPEAKERS NEW!

Regular price $39.00
Regular price Sale price $39.00
Sale Sold out

4XCRUNCH CS5768CX 5" x 7" OR 6" x 8" 2-WAY CAR AUDIO

Description
Crunch 5x7/6x8 Inch 2 way 250 watt speaker utilizing Neo Mylar Soft Dome Tweeters and Silver Alpha-Cellulose Poly Cones

Category: CS
SKU: 806576222101
Part #: CS5768CX

Specifications

RMS POWER HANDLING(CEA426B)
125 watts

PEAK POWER HANDLING (CEA426B)
250 watts

SPEAKER IMPEDANCE
4 Ω

FREQUENCY RESPONSE +/- 10DB

FREQUENCY RESPONSE +/- 3DB
46Hz-20kHz

SENSITIVITY (1 WATT/1 METER)
88dB

CROSSOVER POINT
4K Hz

CROSSOVER SLOPE
12dB

MOUNTING DIAMETER/CUT OUT
5.67

OUTSIDE DIAMETER
8.60 x 5.56 No Grill

MOUNTING DEPTH/CHASSIS DEPTH
2.13

PRODUCT DIMENSIONS
12.75 x 9.63 x 3.69 in
30.96 x 24.4 x 9.3 cm

PRODUCT WEIGHT
3.4 lbs (1.5 kg)

Features & Benefits

TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements

SURROUND: UV Resistant Rubber Surround Moisture Resistant Rubber Surround with high Mid-Bass Impact

CONE: Silver Alpha-Cellulose Poly Cones Produces musical midrange and bass tones while remaining light weight

SURROUND / CONE COUPLING: High Temperature Adhesive The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather

· GASKET: Textured ABS Assures a ridged linear seal to the mounting surface

· TINSEL LEADS: Braided Highly conductive while remain flexible during high power applications

· VOICE COIL: Pure Copper Creates strong magnetic field with a very thin extrusion

· VOICE COIL FORMER: Kapton Lightweight and efficiently dissipates heat

· SPIDER: Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.

· COOLING SYSTEM: Over-Coil Air is exchanged over the voice coil through the spider

· CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element

· CROSSOVER SPECIAL: 6dB Internal Integrated into the design to assure smooth midrange to tweeter frequency transitions

· FRAME: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing

· MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application

· CONNECTORS: Spade Use spade connectors or solder direct for the best connection

· GRILLS: No. These speakers are typically installed behind an OEM panel

· TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability

· TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh

· TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat

BUYERS WILL GET 2 PAIRS(4 SPEAKERS) PER PURCHASE
