Beyma

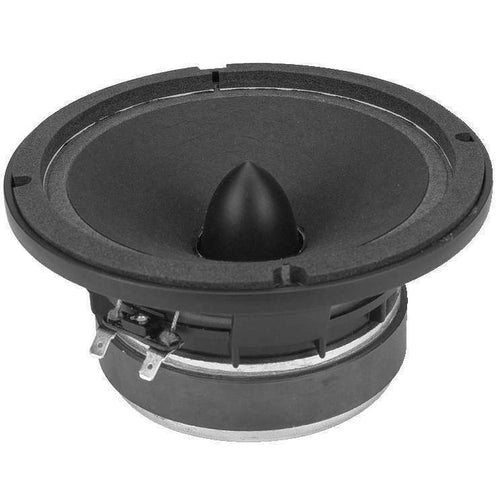

6MI90 BEYMA 6.5" MID BASS Car Stereo Speaker NEW

6MI90 BEYMA 6.5" MID BASS Car Stereo Speaker NEW

$149.00
$149.00
Sale Sold out
BRAND NEW

6MI90 BEYMA

6.5" MID BASS Car Stereo Speaker

This 6MI90 is an improved version of the former 6MI80. It is mounted with a cast aluminum basket that reduces mechanical vibrations and increases thermal dissipation. It has been especially designed for high quality sound reinforcement systems, mid and mid bass applications.
  • The beyma 6MI90 6.5" speaker handles 125 watts RMS & 250 watts program power handling
  • High sensitivity: 98 dB
  • Die cast Aluminium basket
  • 1.5" (38.5 mm.) edge wound copper ribbon voice coil
  • High dispersion control
  • Low harmonic distortion
  • Nominal diameter: 165 mm. / 6.5 in.
  • Rated impedance: 8 ohms.
  • Minimum impedance: 7.1 ohms.
  • Power capacity*: 125 w AES
  • Program Power: 250 w
  • Sensitivity: 98 dB / 2.83v 1m 2
  • Frequency range: 150 - 8000 Hz
  • Voice coil diameter: 38.5 mm. / 1.5 in.
  • Magnetic assembly weight: 2 kg. / 4.4 lb
  • BL factor: 9.6 N/A
  • Moving mass: 0.009 kg.
  • Voice coil length: 7 mm.
  • Air gap height: 6 mm.
  • Overall diameter: 174 mm. / 6.85 in.
  • Bolt circle diameter: 158 mm. / 6.22 in.
  • Front mount: 146 mm. / 5.75 in
  • Rear mount: 142 mm. / 5.59 in.
  • Depth: 85 mm. / 3.35 in.
  • Volume displaced by driver: 0.75 l / 0.026 ft.3
  • Resonant Frequency, fs: 120 Hz
  • D.C. Voice Coil Resistance, Re: 6 ohms.
  • Mechanical Quality Factor, Qms: 6.8
  • Electrical Quality Factor, Qes: 0.47
  • Total Quality Factor, Qts: 0.44
  • Equivalent Air Volume to Cms, Vas: 7 l
  • Mechanical Compliance, Cms: 195 µm/N
  • Mechanical Resistance, Rms: 1 kg/s
  • Efficiency (%): 1.7
  • Effective Surface Area, Sd (m2): 0.0140 m2
  • Maximum Displacement, Xmax: 1 mm.
  • Displacement Volume, Vd: 14 cm.3
  • Voice Coil Inductance, Le 1kHz: 0.5 mH
  • Basket: Die cast aluminium
  • Cone: Paper
  • Surround: Foam
  • Voice coil: Copper
  • Magnet: Ferrite
