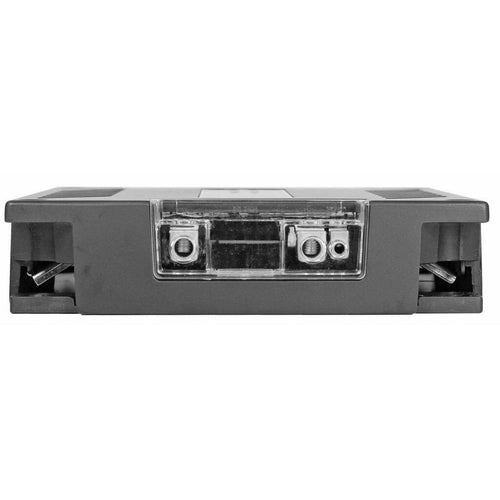

800.41OHM BANDA 800.4 1 ohm Four Channel 200 Watts Max 1 Ohm Car Audio Amplifier

by BANDA
Sold out
$245.00
BRAND NEW

800.41OHM BANDA

800.4 1 ohm Four Channel 200 Watts Max 1 Ohm Car Audio Amplifier
  • Total Power 14.4 2 Ohms; 4 x 260 WRMS
  • Total Power 14.4 4 Ohms: 2 x 520 WRMS
  • Total Power 12.6 2 Ohms: 4 x 200 WRMS
  • Total Power 12.6 4 Ohms: 2 x 400 WRMS
  • Efficiency 4 Ohms: 84%
  • Efficiency 2 Ohms: 78%
  • Input Voltage: 9 to 15V
  • Input Impedance: 22K Ohms
  • THD+Noise: less than 1%
  • Input Sensitivity: 150mV to 2.1V
  • SNR: 83dB
  • Frequency Response: 30 to 30kHz (-3dBs)
  • HPF (High Pass Filter): 30 to 80Hz 12dB/octave Linkwitz-Riley
  • LPF (Low Pass Filter): 80 to 30kHz 12dB/octave Linkwitz-Riley
  • Recommended Fuse: 50 A
  • Current at Rest: 1 A
  • Average Current Draw (Sinusoidal): 90 A
  • Average Current Draw (Music): 40 A
  • Power Wire Gauge (min.
  • Recommended): 16mm / 5 AWG
  • Speaker Wire Gauge (min.
  • Recommended): 2 x 2.5mm / 2 x 14 AWG
  • Weight (Lb): 6.9
  • Height (in): 2.2
  • Width (in): 8.4
  • Depth (in): 9.7
