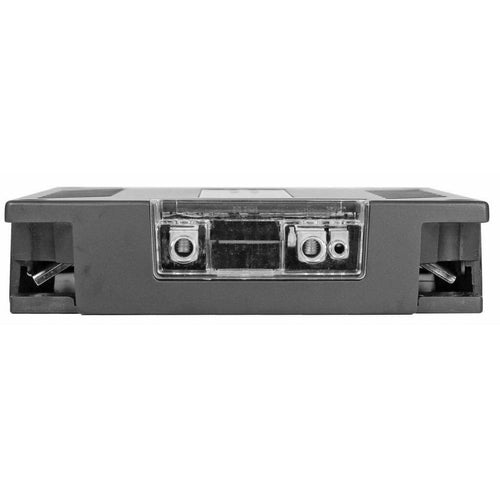

800.42OHM BANDA 2 ohms Four Channel 200 Watts Max @ 2 Ohm Car Audio Amplifier
800.42OHM BANDA 2 ohms Four Channel 200 Watts Max @ 2 Ohm Car Audio Amplifier
Regular price
$209.00
Regular price
Sale price
$209.00
Unit price
/
per
Couldn't load pickup availability
BRAND NEW
800.42OHM BANDA 2 ohms Four Channel 200 Watts Max
@ 2 Ohm Car Audio Amplifier
Total Power 14,4 @ 2 Ohms - 4 x 260 WRMS
Total Power 14,4 @ 4 Ohms - 2 x 520 WRMS
Total Power 12,6 @ 2 Ohms - 4 x 200 WRMS
Total Power 12,6 @ 4 Ohms - 2 x 400 WRMS
Efficiency @ 4 Ohms - 84%
Efficiency @ 2 Ohms -78%
Input Voltage - 9 – 15V
Input Impedance - 22K Ohms
THD+Noise - <1%
Input Sensitivity -150mV – 2,1V
SNR-83dB
Frequency Response - 30 to 30kHz (-3dBs)
HPF (High Pass Filter) - 30 to 80Hz @ 12dB/octave Linkwitz-Riley
LPF (Low Pass Filter) - 80 to 30kHz @ 12dB/octave Linkwitz-Riley
Recommended Fuse - 50 A
Current at Rest - 1 A
Average Current Draw (Sinusoidal) - 90 A
Average Current Draw (Music) -40 A
Power Wire Gauge (min. Recommended) - 16mm / 5 AWG
Speaker Wire Gauge (min. Recommended) -2 x 2,5mm / 2 x 14 AWG
Weight (Lb)
6.9
Height (in)
2.2
Width (in)
8.4
Depth (in)
9.7
