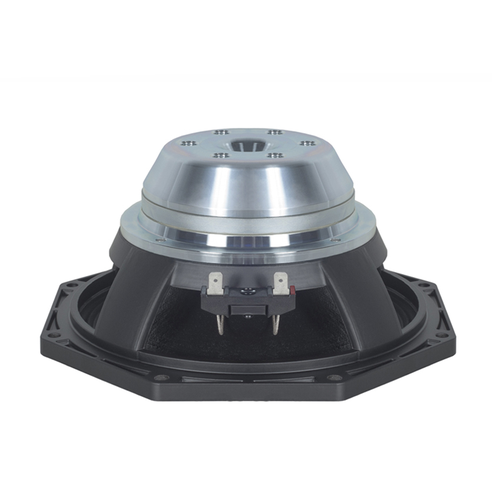

8NW51 B AND C 8-Inch Lightweight Mid-Bass Woofer NEW
8NW51 B AND C 8-Inch Lightweight Mid-Bass Woofer NEW
Regular price
$295.50
Regular price
Sale price
$295.50
Unit price
/
per
Couldn't load pickup availability
BRAND NEW
8NW51 B AND C
8-Inch Lightweight Mid-Bass Woofer
- The B&C 8NW51 8" neodymium woofer is recommended for compact 2-way speaker systems or as the midbass/midrange element in high-output 3-way and 4-way designs. High BL and sensitivity combined with a low Qts make this an ideal driver for horn-loaded applications.
- Great for line arrays and horn loading
- Neodymium magnet assembly
- Ventilated voice coil gap for reduced power compression
- Inductance-reducing copper cap on pole piece extends HF response
- 2" copper voice coil on fiberglass former
- 400 watts continuous program power capacity
- 70 – 3,000 Hz response
- Nominal Diameter 8"
- Power Handling (RMS)200 Watts
- Power Handling (max) 400 Watts
- Impedance 8 ohms
- Frequency Response 70 to 3,000 Hz
- Sensitivity 97 dB 1W/1m
- Voice Coil Diameter 2"
- Resonant Frequency (Fs)74 Hz
- DC Resistance (Re) 5.2 ohms
- Voice Coil Inductance (Le) 0.4 mH
- Mechanical Q (Qms) 2.7
- Electromagnetic Q (Qes) 0.19
- Total Q (Qts) 0.17
- Compliance Equivalent Volume (Vas) 0.4 ft.³
- BL Product (BL) 18.9 Tm
- Diaphragm Mass Inc. Air load (Mms) 28g
- Maximum Linear Excursion (Xmax) 6 mm
- Surface Area of Cone (Sd) 220 cm²
- Cone Material Paper
- Surround Material Cloth
- Voice Coil Wire Material Copper
- Voice Coil Former Fiberglass
- Basket / Frame Material Cast Aluminum
- Magnet Material Neodymium
- Overall Outside Diameter 8.8"
- Baffle Cutout Diameter 7.4"
- Depth 4"
- Bolt Circle Diameter 8.3"
- # Mounting Holes 8
