Alesis MULTIMIX10WIRELE 10-Channel Rackmount Mixer w/Bluetooth Wireless New!

Alesis MULTIMIX10WIRELE

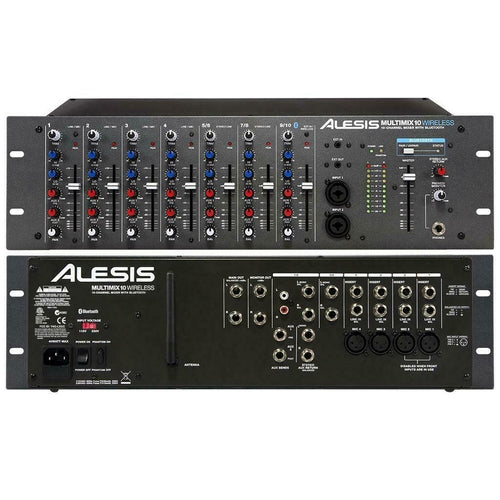

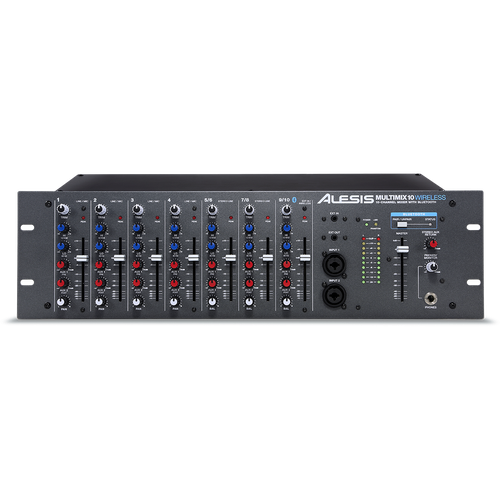

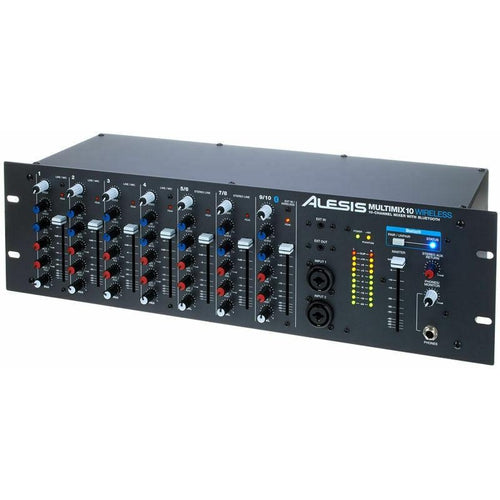

Front panel features a stereo 1/8-inch aux input, 1/8-inch stereo mix output, plus 2 XLR+1/4-inch combo inputs

2 stereo-paired channels with 1/4-inch inputs

4 mono channels with XLR+1/4-inch combo inputs, phantom power and TRS inserts

Compact and Complete

MultiMix 10 Wireless delivers ten-channel mixing in a neat 3U package that is perfect for clubs and venues, houses of worship, and mobile/traveling systems.

Bluetooth Connectivity

Stream a stereo audio signal from any Bluetooth device to the MultiMix 10 Wireless. Single-button pairing keeps it simple and easy to play music between sets.

Maximum Mixing

Each single and stereo-paired channel offers a trim knob, peak LED, and a smooth-traveling 60mm fader for attaining the best signal level right at your fingertips.

Clever Front Panel Inputs

No more snaking cables from front to back. Channels 1 and 2 are equipped with XLR+1/4" combo inputs that override the rear jacks, plus a 1/8" input.

Technical Specifications

Type: Analog

Channels: 10

Input Voltage: 115-230V AC, 50-60Hz

Frequency Response: 20Hz–50kHz, ±0.5dB

Dynamic Range: 108dB

Distortion: <0.005% THD+N (mic/line to L/R main out)

Maximum Gain: 70dB (mic in to L/R main out)

Headroom: 24dB

Inputs

Mic Preamps: (4) XLR

Line:

(4) 1/4” TRS (channels 1-4)

(4) 1/4” TRS (channels 5-8)

(2) RCA (Tape)

Other

(1) 1/8” stereo line level (channels 9-10)

(2) XLR+1/4” combo (Front)

Outputs

Main

(2) 1/4” TRS (Main)

(2) 1/4” TS (Monitor)

(1) 1/8” (Front)

Other

(2) RCA (Tape)

(1) 1/4” headphones

Send/Return I/O: (2) TRS / (2) Stereo

Phantom Power: +48V via XLR

EQ Bands: 2-band (CH 1-10)

Aux Sends:

(1) Pre

(1) Post

Faders: (11) 60mm

Dimensions (height x width x depth): 5.2” x 19.0” x 6.3” Rackmountable 3U

Weight 8.9 lbs.

Features

- Convenient front panel jacks add versatility

- Bluetooth streaming with simple single-button pairing

- 4 high-gain mic/line preamps with inserts

- 2-band high and low shelving EQ on every channel

- Pre-fader and post-fader aux sends; stereo aux return

Whats in the box:

MultiMix 10 Wireless

Power Supply

Quickstart Guide

Safety & Warranty Manual
