Audiopipe

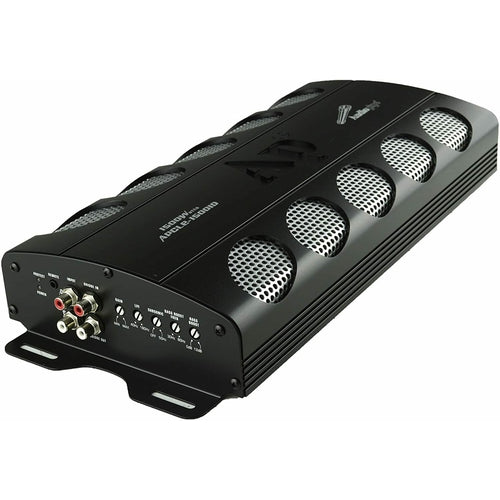

APCL-15001D Audiopipe 1500 Watts Mosfet Amplifier Class D NEW

Name: APCL-15001D Audiopipe 1500 Watts Mosfet Amplifier Class D NEW
Brand: Audiopipe
SKU: APCL-15001D
Price: 185.00 USD
Availability: OutOfStock

$185.00

Sale Sold out

Quantity

BRAND NEW

APCL-15001D Audiopipe

1500 Watts Mosfet Amplifier Class D

Audiopipe's APCL-15001D monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.

Quality without the Cost

The Audiopipe Consumer Line series amplifiers were reengineered from the ground up in 2012 to provide plenty of high quality power for even the highest end sound system while keeping their footprint as compact as possible. Audiopipe didn’t skimp on the internals of these amps, the Consumer Line features the finest in electronic protection circuitry to protect against harmful short circuits, thermal overloads and overheating. These premium choice amplifiers are sure to impress.

Oversized Toroids for Oversized Sound

The Consumer Line amplifiers are built with performance in mind, and a quick look under the hood of these amplifiers reveal oversized toroids. These toroids (basically just wire coils) help to regulate the voltage in the amplifier. By overbuilding them, Audiopipe ensures that every CL series amp puts out even, consistent power for the best possible sound, and the longest life from your

The Finest in Heat Dissipation

When redesigning the Consumer Line series, Audiopipe took great care in designing an amplifier that would not overheat. These amps feature a high quality aluminum heat sink with cooling fins running along each side and grills embedded in the top plate to ensure outstanding heat dissipation and prevent any unwanted heat related shutdowns.

16V System Compatibility

The Audiopipe Consumer Line Class D monoblock amps are intended for hard hitting sound, so much so that they were designed for compatibility with 16V vehicle electrical systems. Because the CL series amps are capable of accepting a higher voltage than the standard 12V amplifier, they are able to produce much more power.

Consumer Line Series Monoblock Class D Car Amplifier

RMS Power Rating:

4 ohms: 600 watts x 1 chan.
2 ohms: 950 watts x 1 chan.
1 ohm: 1500 watts x 1 chan.

Power Rating:

4 ohms: 526 watts x 1 chan.
2 ohms: 884 watts x 1 chan.
1 ohm: 1325 watts x 1 chan.

Double side FR-4 PCB with high quality SMD components

Parametric bass-boost equalizer

Pulse Width Modulated MOSFET power supply

Wired remote bass level control included

LED power (green) and protect (red) indicators

Preamp RCA outputs to daisy chain multiple amps

3-way protection circuitry (thermal, overload, and speaker short protection)

Dual speaker terminals simplify the hookup of multiple speakers

Heavy duty aluminum alloy heat-sink for extreme heat dissipation

Input sensitivity: 200mV - 5V

Frequency Response: 8 - 180 Hz

Total Harmonic Distortion (THD): <0.05%

Signal to Noise Ration: 70dB

Variable low-pass filter: 40 - 180 Hz

Subsonic filter: 5 - 50 Hz

Variable Bass Boost: 0 to +12 dB bass boost at 30 - 80 Hz

Fuse Rating: 100A x 1

4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
