Audiopipe

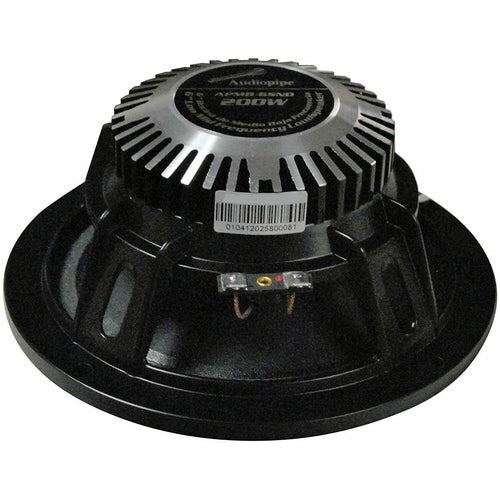

APMB6SNDB Audiopipe 200W 6"low Frequency Loudspeaker NEW
APMB6SNDB Audiopipe 200W 6"low Frequency Loudspeaker NEW
Regular price
$149.00
Regular price
Sale price
$149.00
Unit price
/
per
Couldn't load pickup availability
BRAND NEW
APMB6SNDB Audiopipe
200W 6"low Frequency Loudspeaker
- Pro Audio Quality in Your Car
The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers
- Phase Plug for Sound QualityIncorporated Phase Plugs Provide Better Sound
Audiopipe designed the 6SND speaker with an incorporated phase plug to provide high quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.
- Smaller Magnet, Same StrengthCompact, Lightweight Neodymium Magnet
When faced with limited space for your speaker installation, a speaker with neodymium magnets can be invaluable. Neodymium magnets take up significantly less space (and are significantly lighter in weight) than a conventional magnet without sacrificing strength. A high quality aluminum heat sink ensures your speaker won't overheat during use.
- Light and StrongDurable Audiopipe Paper Cones
Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 6SND speakers feature a light weight yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.
- FS (Free Air Resonance): 133 Hz
- RE (DC Resistance): 5.8 ohms
- Le (Voice Coil Inductance): 0.13 mH
- QMS (Mechanical Q Value): 3.4
- QES (Electrical Q Value): 0.46
- QTS (Total Speaker Q Value): 0.4
- VAS (Equivalent Compliance): 4.3 L (0.15 cu ft.)
- Xmax (One-Way Linear Excursion): 2mm (0.08")
- F3 (for Sealed Enclosure): 0.26 cu ft.: 145 Hz, 0.50 cu ft.: 140 Hz
- F3 (for Vented Enclosure): 0.20 cu ft.: 125 Hz
- 6" APMB Series Midrange Driver
- Power Handling: Peak: 200 watts, RMS: 100 watts
- Low mid frequency loudspeaker
- Loudspeaker design provides pro audio quality sound in your car
- High quality paper cone
- Corrugated surround
- Bullet dust cap ensures high quality high frequency sound
- Die-cast lightweight aluminum basket
- Powerful 3.1 oz. neodynium magnet
- Durable 1.5" TIL voice coil
- 8 ohms impedance
- Frequency Response: 100-8,000 Hz
- Top-mount Depth: 2-1/2"
- Sensitivity: 96dB
