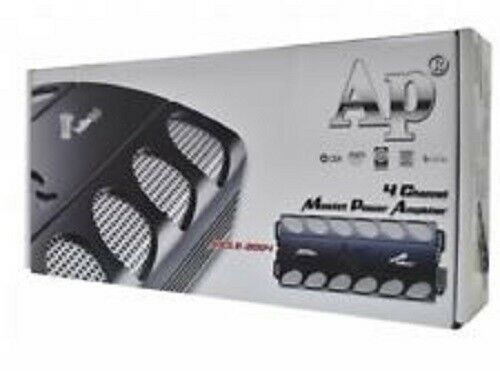

Audiopipe APCLE-2004 2000 Watt 4-Channel Class AB Car Audio MOSFET Amplifier NEW

Audiopipe APCLE-2004 2000 Watt Class AB 4-Channel Amplifier

Features:

2000 Watts Max Power

Pulse Width Modulated MOSFET Power supply

Double side FR-4 PCB with high quality SMD components

Oversized toroids for excellent current and voltage control

3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.

Multi-channel operation and bridging for 4-channel / 3-channel (Single bridged + 2-channel stereo) / 2-channel (Dual bridged)

2 ohm stereo stable and 4 ohm bridged stable

Variable Low Pass filters allow you to adjust the playback frequencies from 55Hz to 550Hz at 12dB per octave (CH1 and 2)

Variable Low Pass filters allow you to adjust the playback frequencies from 55Hz to 5.5kHz at 12dB per octave (CH3 and 4)

Variable High Pass filters allow you to adjust the playback frequencies from 55Hz to 550Hz at 12dB per octave (CH1 and 2)

Variable High Pass filters allow you to adjust the playback frequencies from 55Hz to 550Hz at 12dB per octave (CH3 and 4)

4 channel RCA inputs accepts up to 6 volt input signals (Built in ground loop isolation)

4 channel Speaker-level inputs accepts up to 12 volt input signals

Soft-start remote turn on to prevent speaker pops

0° and 180° phase control

Variable Bass boost controls: 0 - +15dB at 45Hz

Platinum plated terminals for all connections

Accepts up to 16 volts DC input for maximum sound output

Frequency Response: 20Hz to 20 kHz

Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)

Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >95dB

Dimensions: 15-1/8" (W) x 2-1/8" (H) x 7" (D)

Minimum 4 Gauge power wire with 60 amp fuse

RMS Power Rating:

4 ohms: 100 watts x 4 channels

2 ohms: 150 watts x 4 channels

4 ohms: 300 watts x 2 channel (Bridged)

WHATS IN THE BOX:

4-Channel power amplifier

Mounting hardware

Instruction manual
