AUDIOPIPE

AUDIOPIPE APCLE-3002 AMPLIFIER 1500 WATT 2 CHANNEL BRAND NEW!

AUDIOPIPE APCLE-3002 AMPLIFIER 1500 WATT 2 CHANNEL BRAND NEW!

Regular price $149.00
Regular price Sale price $149.00
Sale Sold out

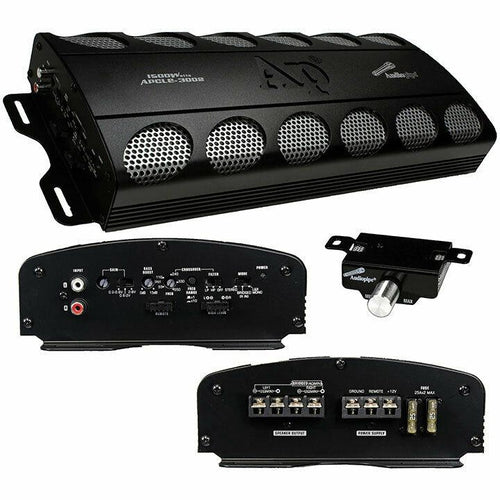

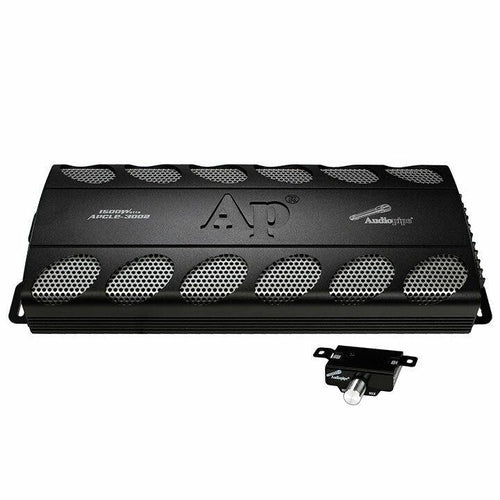

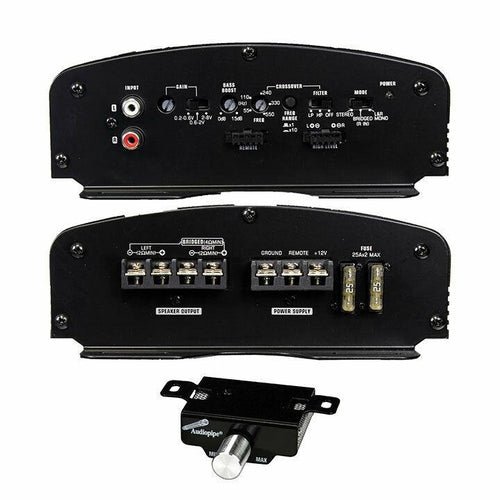

Audiopipe APCLE-3002 1500 Watt

Class AB 2-Channel Amplifier

Unit includes: 2-Channel power amplifier, Mounting hardware and Instruction manual


Features:

1500 Watts Max Power

Pulse Width Modulated MOSFET Power supply

Double side FR-4 PCB with high quality SMD components

Oversized toroids for excellent current and voltage control

3-Way Protection circuit senses internal temperature and automatically

lowers input level to prevent heat damage. Short circuit protection

prevent damage when speaker leads are shorted. Overload protection

prevent damage from low impedance or blown woofers.

Multi-channel operation and bridging for 2-channel / 1-channel (Bridged)

2 ohm stereo stable and 4 ohm bridged stable

Variable Low Pass filters allow you to adjust the playback frequencies from 55Hz to 5.5kHz at 12dB per octave

Variable High Pass filters allow you to adjust the playback frequencies from 55Hz to 5.5kHz at 12dB per octave

2 channel RCA inputs accepts up to 8 volt input signals (Built in ground loop isolation)

2 channel Speaker-level inputs accepts up to 20 volt input signals

Soft-start remote turn on to prevent speaker pops

0° and 180° phase control

Variable Bass boost controls: 0 - +15dB at 45Hz

Platinum plated terminals for all connections

Accepts up to 16 volts DC input for maximum sound output

Frequency Response: 20Hz to 20 kHz

Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)

Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >95dB

Dimensions: 15" (W) x 2-1/8" (H) x 7" (D)

Minimum 8 Gauge power wire with 50 amp fuse

RMS Power Rating:

4 ohms: 150 watts x 2 channels

2 ohms: 300 watts x 2 channels

4 ohms: 600 watts x 1 channel (Bridged)
