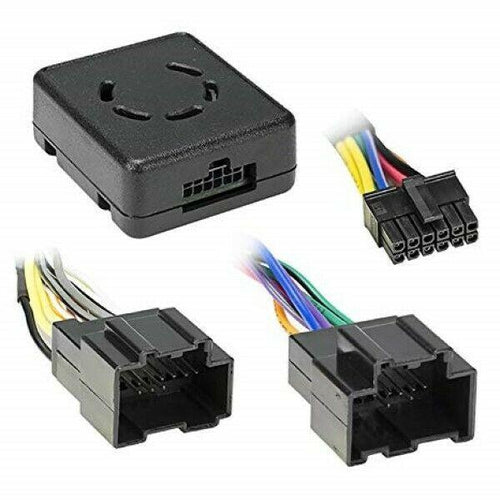

AXRC-GMLN1 AXXESS Radio Interface IMPALA/SILVERADO (Replaced LC-GMRC-LAN-01)

AXXESS AXRC-GMLN1

(Replaced LC-GMRC-LAN-01)

Chime Retention Interface with Built-In Speaker by Axxess. Replacing the stereo in a late-model GM

car has a down side: the seatbelt chime and the turn signal click are actually piped through the stereo and into the speakers.

New stereo = no chime. This module uses a speaker built into the module to generate the chime sound.

Features:

Provides accessory (12 volt 3 amp)

Retains R.A.P. if equipped

Used in non amplified systems or when removing amplified systems

Retains warning chimes

Small in size

USB updatable

Uses Micro B – USB

Connections:

Yellow – 12V Constant

Red – 12V Accessory

Black - Ground

Orange – Dash Light Dimmer/Illumination

Green – Left Rear Speaker (+)

Green with Black Stripe Left Rear Speaker (-)

White – Left Front Speaker (+)

White with Black Stripe – Left Front Speaker (-)

Purple – Right Rear Speaker (+)

Purple with Black Stripe – Right Rear Speaker (-)

Gray – Right Front Speaker (+)

Gray with Black Stripe – Right Front Speaker (-)
