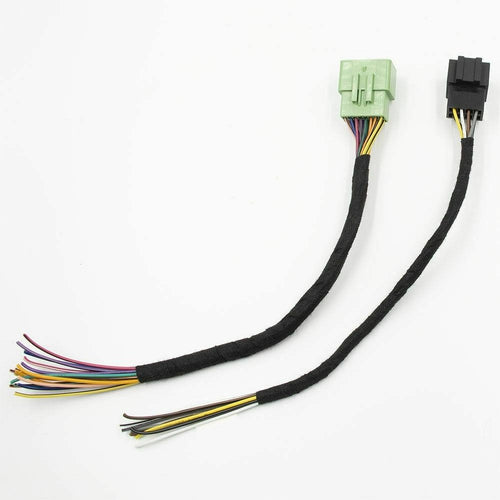

Axxess AX-AB-GM1 Bypass Wiring Harness for 2014-up GM Vehicles Factory Amplifier
Axxess AX-AB-GM1 Bypass Wiring Harness for 2014-up GM Vehicles Factory Amplifier
Unit Includes: Plug-and-Play Amp Bypass Harness
Axxess AX-AB-GM1 Amplifier Bypass Harness for 2014 - and Up Chevrolet and GMC
vehicles
Features:
Fits 2014 - and Up Chevrolet and GMC vehicles
T-harness is a basic and simple plug-n-play harness for easy installation of aftermarket amplifiers while bypassing the factory amp
Provides connections to all factory speaker wires with an aftermarket amplifier
Plug and play installation, requires no cutting of the factory speaker wires and amplifier connections
Instruction Manual - Axxess AX-AB-GM1 Amplifier Bypass Harness Instruction manual
Tools Required:
Panel Removal tool
Wire Crimper
Crimp connectors
Digital volt meters
Phillips Screwdriver
Socket wrench
Vehicle Applications:
Chevrolet
2015 - 2018 Colorado
2014 - 2018 Silverado 1500
2015 - 2018 Silverado 2500
2015 - 2018 Silverado 3500
2015 - and Up Suburban
2015 - and Up Tahoe
GMC
2015 - 2018 Canyon
2014 - 2018 Sierra 1500
2015 - 2018 Sierra 2500
2015 - 2018 Sierra 3500
2015 - and Up Yukon
2015 - and Up Yukon XL
Wire connections
8-Pin Harness
Gray - Right Front Tweeter and Mid-range (+)
Gray with Black Stripe - Right Front Tweeter and Mid-range (-)
White - Left Front Tweeter and Mid-range (+)
White with Black Stripe - Left Front Tweeter and Mid-range (-)
Brown - Not used (+)
Brown with Black Stripe - Not used (+)
16-Pin Harness
Purple - Right Rear Speaker (+)
Purple with Black Stripe - Right Rear Speaker (-)
Green - Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
Blue - Right Front Tweeter (+)
Blue with Black Stripe - Right Front Tweeter (-)
Red with White Stripe - Left Front Tweeter (+)
Red with Black Stripe - Left Front Tweeter (-)
Pink - Center Channel (+)
Pink with Black Stripe - Center Channel (-)
Orange - Subwoofer (+)
Orange with Black Stripe - Subwoofer (-)
