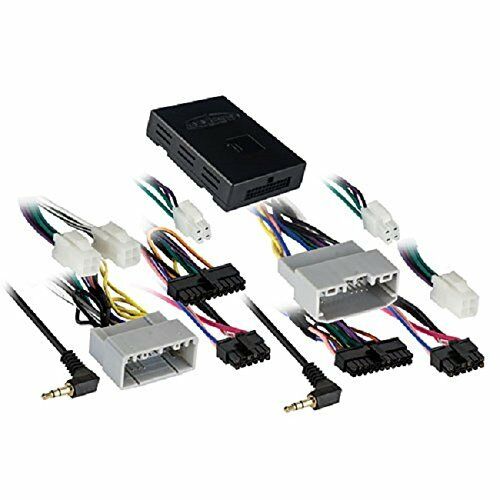

Axxess AX-ADCH100 Data Harness For 04-Up Chrysler/Dodge/Jeep/Mitsubishi Vehicles
Axxess AX-ADCH100 Data Harness For 04-Up Chrysler/Dodge/Jeep/Mitsubishi Vehicles
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Used in amplified, non-amplified systems, or digital amplified systems
• Provides NAV outputs (Parking Brake, Reverse, Mute, V.S.S.)
• ASWC-1 harness included (ASWC-1 sold separately)
• Adjustable gain control for overall volume (on amplified systems)
• Retains Blind spot detection system (if equipped)
• High level speaker input
• Micro “B” USB updatable
• AX-ADBOX1 Interface • 16-pin harness with
stripped leads • 16-pin RSE harness • 22-pin
harness to 22-pin Chrysler harness with stripped
leads (A) • 22-pin harness to 22-pin Chrysler
harness with stripped leads (B)
• 4-pin harness with stripped leads
Applications
CHRYSLER
300 2005-2007
Aspen 2007
DODGE
Caliber 2007-2009
Charger 2005-2007
Dakota 2005-2007
Durango 2004-2007
Magnum 2005-2007
Ram 2006-2008
DODGE (continued)
Ram 2500/3500 2006-2009
JEEP
Commander 2006-2007
Compass 2007
Grand Cherokee 2005-2007
Patriot 2007
MITSUBISHI
Raider 2006-2007
AX-ADCH02 (B)
CHRYSLER
200 2011-up
300 2008-up
Aspen 2008-2009
Sebring 2007-2010
Town & Country
2008-up
DODGE
Avenger 2008-up
Caliber 2009-2010
Challenger 2009-up
DODGE (continued)
Charger 2008-2010
Dakota 2008-up
Durango 2008-up
Grand Caravan 2008-2010
Journey 2009-2010
Magnum 2008-2009
Nitro 2007-up
Ram 1500 2009-up
Ram 2500/3500
2010-up
JEEP
Commander 2008-2010
Compass 2009-up
Grand Cherokee
2008-up
Liberty 2008-up
Patriot 2009-up
Wrangler 2007-up
MITSUBISHI
Raider 2008-2009
