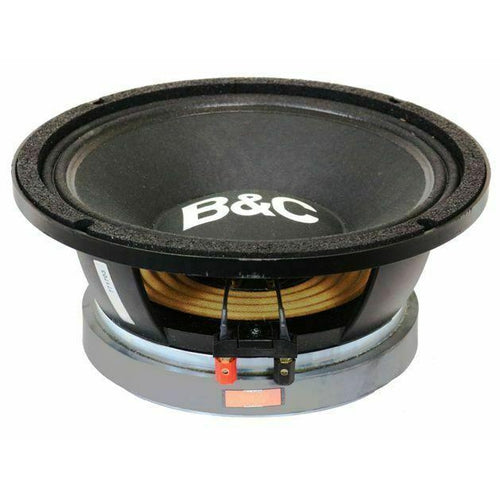

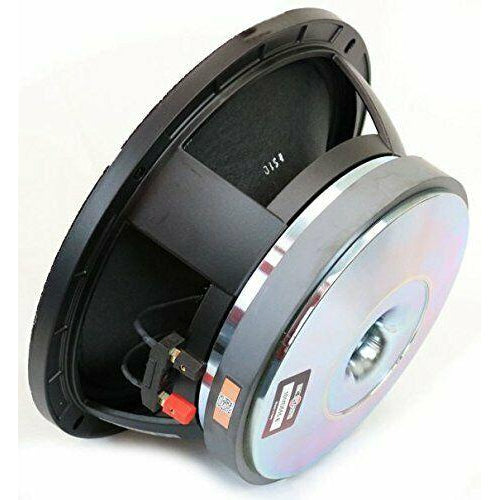

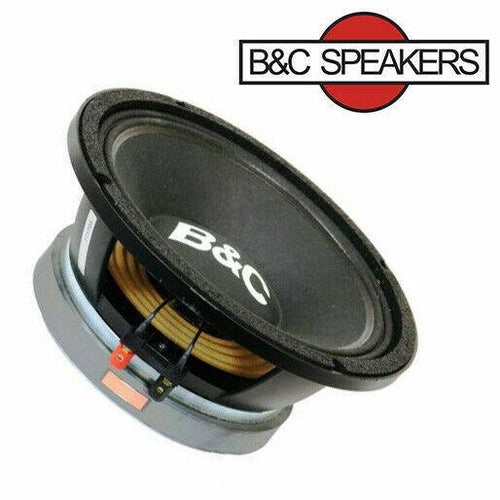

B&C 10MD555 10" Woofer Super High Power Woofer w/ Large Magnet 8 Ohms

B&C 10MD555 10" Woofer Super High Power Woofer

Features:

* Nominal Diameter 250 mm (10.0 in)
* Nominal Impedance 8 Ohms
* Minimum Impedance 7.2 Ohms
* Nominal Power Handling 350 W
* Continuous Power Handling 700 W
* Peak Power Handling:1000 Watts
* Sensitivity 100.0 dB
* Frequency Range 80 - 4000 Hz
* Voice Coil Diameter 76 mm (3.0 in)
* Winding Material Aluminium
* Former Material Glass Fibre
* Winding Depth 11.0 mm (0.43 in)
* Magnetic Gap Depth 8.0 mm (0.31 in)
* Flux Density 1.45 T
* Overall Diameter 262 mm (10.3 in)
* Bolt Circle Diameter 245 mm (9.6 in)
* Baffle Cutout Diameter 230.0 mm (8.8 in)
* Depth 124 mm (4.9 in)
* Flange and Gasket Thickness 14 mm (0.55 in)
* Air Volume Occupied by Driver 2.6 dm3 (0.09 ft 3)
* Net Weight 7.3 kg (16.1 lb)
* Shipping Units 1
* Shipping Weight 7.9 kg (17.4 lb)
* Shipping Box 295x314x175 mm (11.61x12.36x6.89 in)
* Surround Shape Double Roll
* Cone Shape Exponential
* Magnet Material Ferrite
* Spider Single
* Pole Design T-Pole
* Woofer Cone Treatment None
* Resonance Frequency 76 Hz
* Re 5.8 Ohms
* Qes 0.22
* Qms 4.8
* Qts 0.21
* Vas 20.0 dm3 (0.71 ft 3)
* Sd 320.0 cm2 (49.1 in 2)
* ?0 3.9 %
* Xmax 1.5 mm
* Xvar 4.5 mm
* Mms 31.0 g
* Bl 19.6 Txm
* Le 1.2 mH
* EBP 345 Hz
