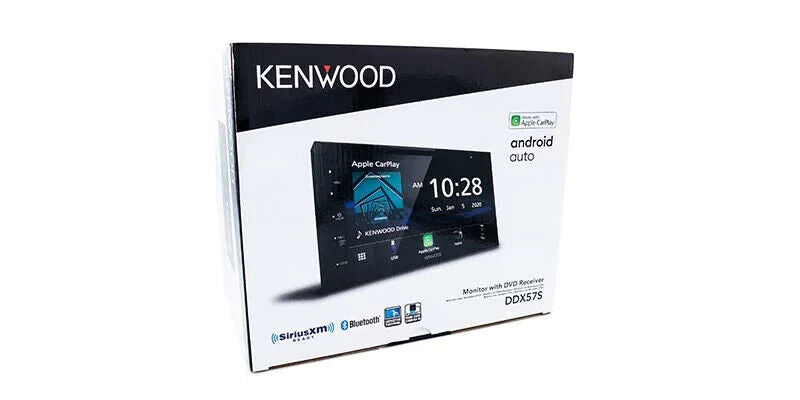

Kenwood DDX57S 6.8" DVD Bluetooth Receiver, Touchscreen, Wired Mirroring

KENWOOD AUTHORIZED RETAILER

Kenwood DDX57S 6.8"

DVD Bluetooth Receiver, Touchscreen, Wired Mirroring

6.8" WVGA Monitor with Capacitive Touch Panel

• Apple CarPlay™ & Android Auto™ Ready
• USB Mirroring for Android
• 13 Band EQ & Digital Time Alignment
• Rear View Camera Input with Parking Guidelines
• Built-in Bluetooth
• 2 Preouts 2V & Subwoofer Out



• Capacitive Touch Panel

Clear glass display with swipe functionality

that provides superior picture and touch panel control.

Android USB Mirroring

Solution for seamlessly displaying and controlling your

smartphone apps on a screen via a USB connection on select Android devices.

Parking Guide Lines

Parking guide lines (requires installation of compatible backup camera)

that enhance the effectiveness of a backup camera.

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

FLAC Supported

Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.

Android Rapid Charge

Rapidly charge your compatible Android smartphone with the

 USB port, up to a maximum of 1.5A.





Smartphone Connectivity

Enjoy built-in Bluetooth for convenient access to hands-free calls

and streaming music, as well as the ability to use your

smartphone like a wireless remote control.

Safe, Smart and Comprehensive Control with Apple CarPlay

Apple CarPlay is a safer way to use your iPhone in the car. Simply

talk to Siri or touch the receiver's display to get directions from Apple Maps,

make phone calls, listen to voicemail, send and receive texts, and listen to music,

all in a way that allows you to stay focused on the road.

 With the latest iOS version (iOS 12.0 and higher),

 3rd party navigation apps like Google Maps™ and Waze™ are also supported.



Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions

 and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive

 voice controlled interface with a large touch screen and superior sound quality, making

it the perfect complement for your in-car life. You can even listen to and control music

 from your favorite streaming services like Pandora and Spotify. Navigate to where you

 need to with Google Maps or Waze.



- To use Android Auto on your car display, you’ll need an Android Auto compatible

 vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.



True Mirroring via USB, 2-Way Touch Control for Android

Allows you to display and control your Android smartphone on the screen of the receiver.

 You can enjoy your favorite apps on a large display and with impressive sound quality.

Before starting, just install the free app “Mirroring OA for KENWOOD”

on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.



The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,

including compatibility with FLAC files.

Simple touch screen sound customization is also available with its built-in 13-Band EQ

 and Digital Time Alignment.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes.

Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

FLAC Support

Compatible with a broad range of audio file formats from high-resolution audio sources such as

FLAC and WAV, to MP3, WMA and AAC.

File format         High-Resolution Audio   Compression     Frequency

WAV     〇          -             ～96kHz / ～24bit

FLAC      〇          Lossless compression

MP3      -             Lossy compression         ～48kHz / ～16bit

Playable FULL HD Video Files

You can play back from USB devices audio and video files compressed in various formats.

Video Codec      Playable up to

MPEG4 1920 × 1080p

H.264    1920 × 1080p

MKV      1920 × 1080p

WMV    640 × 480p

USB sources are available on rear monitor via video output.

Music Codec      Playable up to

FLAC      ～96kHz / ～24bit

WAV     ～96kHz / ～24bit





Safe Driving

Keeping you safe on the road ahead is our top priority





Rear View Camera Input with Parking Guide Lines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle.

 Built-in, adjustable parking guidelines further add to its effectiveness.



Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display and vivid text.

 Easy to use widgets provide access to information screens with a swipe.



SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

(Optional SiriusXM tuner required, sold separately)



Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

Monitor Section	Picture size	6.75inches(diagonal) wide
	W x H	151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
	Display system	Transparent TN LCD panel
	Drive system	TFT active matrix system
	Number of pixels	1,152,000 800H x 480V x RGB
	Effective pixels	99.99%
	Pixel arrangement	RGB striped arrangement
	Back lighting	LED
DVD Section	D/A Converter	24 Bit
	Audio Decoder	Linear PCM Dolby Digital
	Video Decoder	-
	Wow & Flutter	Below Measurable Limit
	Frequency response 96k Sampling	20 - 22,000 Hz
	48k Sampling	20 - 22,000 Hz
	44.1k Sampling	20 - 22,000 Hz
	Total harmonic distortion 1kHz	0.0001
	Signal to Noise ratio	90.5dB
	Dynamic range	89dB
	DISC Format	DVD-Video / VIDEO-CD / CD-DA DVD-R / DVD-RW / DVD+R / DVD+RW
	Sampling frequency	44.1kHz / 48kHz / 96kHz
	Quantifying bit number	16 / 20 / 24bit
USB I/F Section	USB Standard	USB2.0 High Speed
	File System	FAT 16/32 , exFAT
	Maximum Power Supply Current	DC5V=1.5A
	D/A Converter	24Bit
	Audio Decoder	MP3 / WMA / AAC / WAV / FLAC
	Video Decoder	MPEG1/2, MPEG4 / WMV / H.264 / .mkv
	Frequency response 192k Sampling	20 - 20,000 Hz
	96k Sampling	20 - 20,000 Hz
	48k Sampling	20 - 20,000 Hz
	44.1k Sampling	20 - 20,000 Hz
	Total harmonic distortion 1kHz	0.2
	Signal to Noise ratio	75dB
	Dynamic range	75dB
Bluetooth Section	Technology	Bluetooth Ver4.1
	Frequency	2.402 – 2.480 GHz
	RF Output Power (E.I.R.P.)	+8dBm (Avg.), Power Class 1
	Maximum Communication range	Line of sight approx.10m(32.8ft)
	Audio Codec	SBC / AAC
	Multi Profile Support	Multi Profile
	Profile	HFP (V1.6) (Hands Free Profile)
		SPP (Serial Port Profile)
		A2DP (Advanced Audio Distribution Profile)
		AVRCP (V1.5) (Audio/Video Remote Control Profile)
		PBAP (Phonebook Access Profile)
DSP Section	Graphics equalizer
	BAND	13 Band
	frequency (Hz) (BAND1-13)	62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
	Gain	-09 to +09 (-9dB to +9dB)
	2Way X'Over
	HIGH PASS FILTER frequency (Hz)	Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
	SLOPE	-6/ -12/ -18/ -24 dB/Oct.
	Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
	LOW PASS FILTER frequency (Hz)	30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
	SLOPE	-6/ -12/ -18/ -24 dB/Oct.
	Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
	Position
	Front / Rear /Subwoofer Delay	0 to 6.1m (0.01m Step)
	Gain	-8 to 0dB
	Subwoofer Level	-40 to +6dB
FM	Frequency Range	87.9 - 107.9 MHz
	(Frequency step)	(200kHz)
	Usable sensitivity	16.2dBf
	S/N:30dB	1.8μV/75 Ohms
	Quieting sensitivity	-
	DIN S/N 46dB	13dBf(4.47uV/75 ohm)
	Frequency response (±3.0dB)	30Hz - 14kHz
	S/N (dB)	50dB (MONO)
	Selectivity	Over 80dB
	Stereo separation	35dB (1kHz)
AM	Frequency Range	530 - 1700 kHz
	(Frequency step)	(10kHz)
	Usable sensitivity	99μV(40dBμ)
Video	Color system of external video input	NTSC/ PAL
	External video input level (Mini jacks)	1.0Vp-p / 75 Ohms
	External audio max input level (RCA jacks)	1.5V / 25k Ohms
	Video Output level (RCA jacks)	1.0Vp-p / 75 Ohms
Audio	Maximum Power Output (Front&Rear)	45Wx4
	Full Bandwidth Power (at less than 1%THD)	21Wx4
	Output frequency band	20 - 20,000Hz
	Preout level (V)	2.0V / 10k Ohms
	Preout impedance (Ω)	1.4k Ohms
	Speaker Impedance (Ω)	4-8 Ohms
General	Operating voltage	12V DC Car Battery
	Installation Dimensions WxHxD	182 x 112 x 153 (mm) 7-3/16 x 4-7/16 x 6 (inch)
	Main Unit Installation size W x H x D(w/o sleeve)	178 x 100 x 153 (mm) 7 x 3-15/16 x 6 (inch)
	Weight Main unit	1.8 kg / 4.0 lbs
	(Including Sleeve and Trim plate)	2.0 kg / 4.4 lbs
