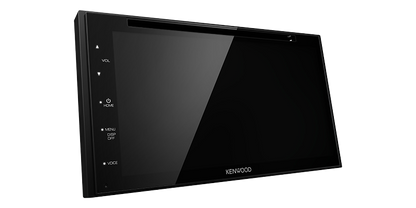

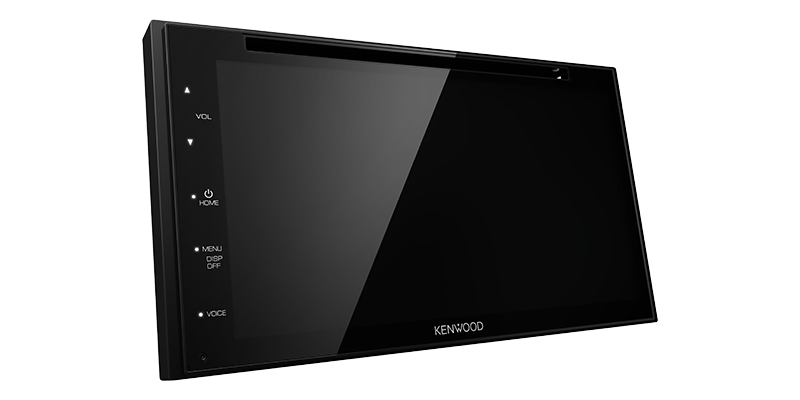

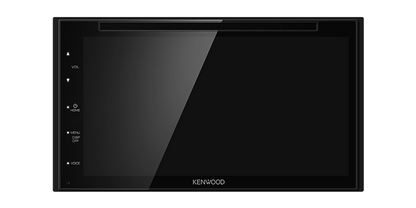

Kenwood DDX5707S DVD Receiver with 6.8" WVGA Monitor Touch Panel Apple CarPlay and Android Auto
Kenwood DDX5707S DVD Receiver with 6.8" WVGA Monitor Touch Panel Apple CarPlay and Android Auto
Couldn't load pickup availability
- 6.8" WVGA Monitor with Capacitive Touch Panel
- Apple CarPlay™ & Android Auto™ Ready
- USB Mirroring for Android
- 13 Band EQ & Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- 2 Preouts 2V & Subwoofer Out
-

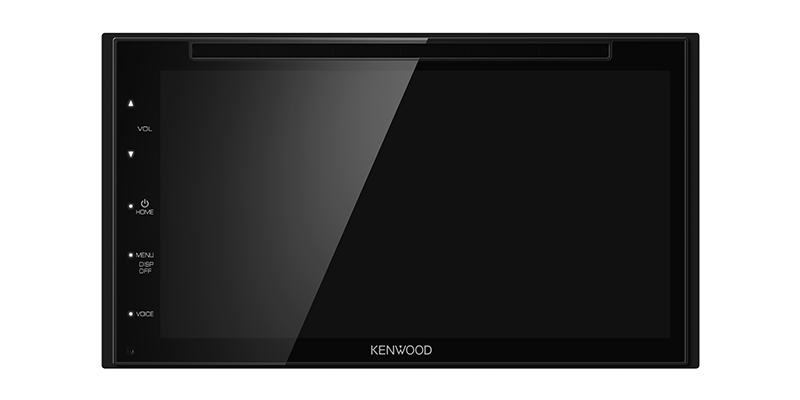

Capacitive Touch Panel
Clear glass display with swipe functionality that provides superior picture and touch panel control.
-
Android USB Mirroring
Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.
-
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
-
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
-
FLAC Supported
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.

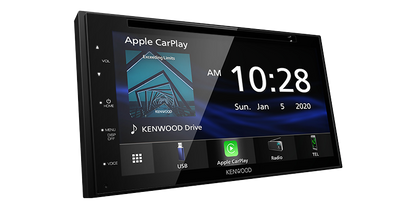

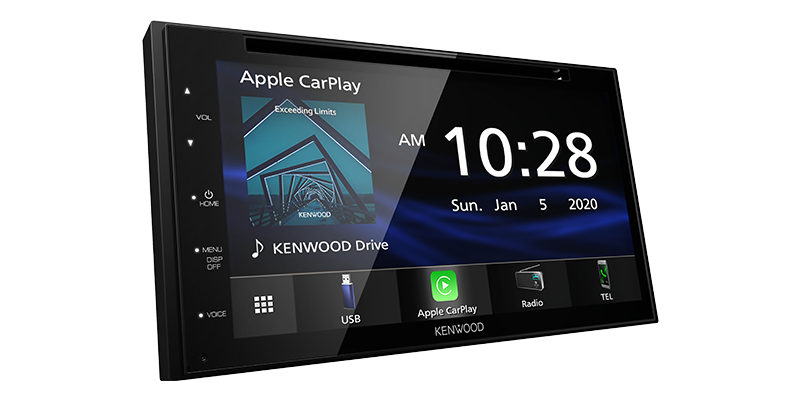

Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.

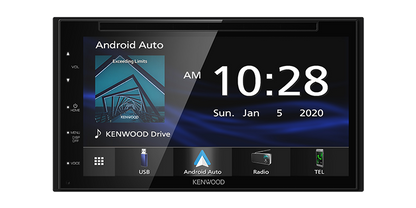

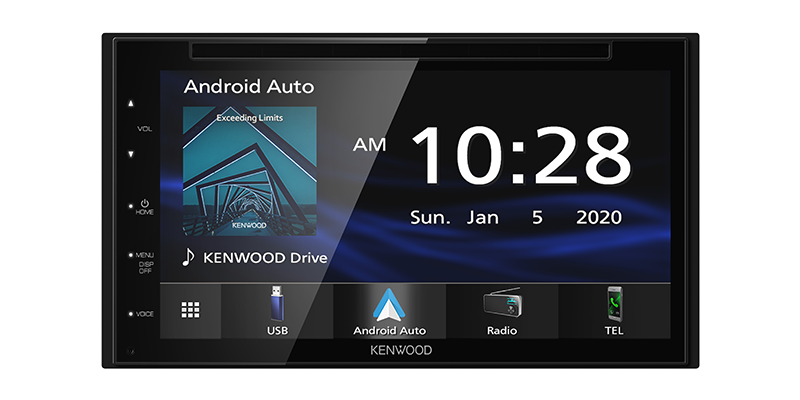

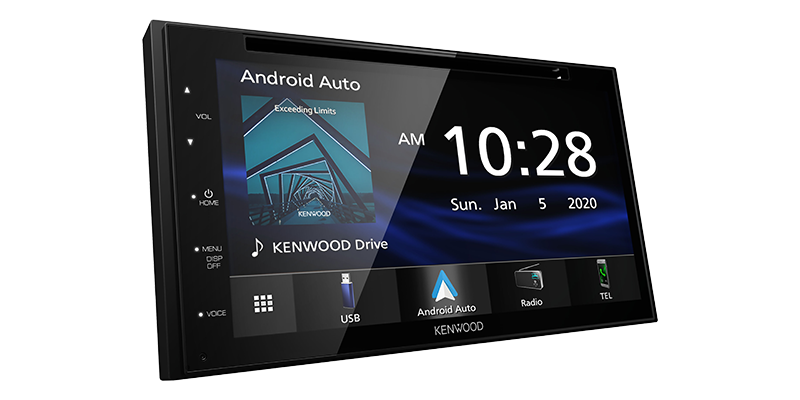

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.
- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.
True Mirroring via USB, 2-Way Touch Control for Android
Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality.
Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
FLAC Support
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Specs
| Monitor Section | Picture size | 6.75inches(diagonal) wide |
| W x H | 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch | |
| Display system | Transparent TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 800H x 480V x RGB |
|
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| DVD Section | D/A Converter | 24 Bit |
| Audio Decoder | Linear PCM Dolby Digital |
|
| Video Decoder | - | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency response 96k Sampling | 20 - 22,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 22,000 Hz | |
| Total harmonic distortion 1kHz | 0.0001 | |
| Signal to Noise ratio | 90.5dB | |
| Dynamic range | 89dB | |
| DISC Format | DVD-Video / VIDEO-CD / CD-DA DVD-R / DVD-RW / DVD+R / DVD+RW |
|
| Sampling frequency | 44.1kHz / 48kHz / 96kHz | |
| Quantifying bit number | 16 / 20 / 24bit | |
| USB I/F Section | USB Standard | USB2.0 High Speed |
| File System | FAT 16/32 , exFAT | |
| Maximum Power Supply Current | DC5V=1.5A | |
| D/A Converter | 24Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC | |
| Video Decoder | MPEG1/2, MPEG4 / WMV / H.264 / .mkv | |
| Frequency response 192k Sampling | 20 - 20,000 Hz | |
| 96k Sampling | 20 - 20,000 Hz | |
| 48k Sampling | 20 - 20,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.2 | |
| Signal to Noise ratio | 75dB | |
| Dynamic range | 75dB | |
| Bluetooth Section | Technology | Bluetooth Ver4.1 |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +8dBm (Avg.), Power Class 1 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.6) (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP (V1.5) (Audio/Video Remote Control Profile) | ||
| PBAP (Phonebook Access Profile) | ||
| DSP Section | Graphics equalizer | |
| BAND | 13 Band | |
| frequency (Hz) (BAND1-13) | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k | |
| Gain | -09 to +09 (-9dB to +9dB) | |
| 2Way X'Over | ||
| HIGH PASS FILTER frequency (Hz) | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 | |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |
| LOW PASS FILTER frequency (Hz) | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through | |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |
| Position | ||
| Front / Rear /Subwoofer Delay | 0 to 6.1m (0.01m Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -40 to +6dB | |
| FM | Frequency Range | 87.9 - 107.9 MHz |
| (Frequency step) | (200kHz) | |
| Usable sensitivity | 16.2dBf | |
| S/N:30dB | 1.8μV/75 Ohms | |
| Quieting sensitivity | - | |
| DIN S/N 46dB | 13dBf(4.47uV/75 ohm) | |
| Frequency response (±3.0dB) |
30Hz - 14kHz | |
| S/N (dB) | 50dB (MONO) | |
| Selectivity | Over 80dB | |
| Stereo separation | 35dB (1kHz) | |
| AM | Frequency Range | 530 - 1700 kHz |
| (Frequency step) | (10kHz) | |
| Usable sensitivity | 99μV(40dBμ) | |
| Video | Color system of external video input | NTSC/ PAL |
| External video input level (Mini jacks) | 1.0Vp-p / 75 Ohms | |
| External audio max input level (RCA jacks) | 1.5V / 25k Ohms | |
| Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| Audio | Maximum Power Output (Front&Rear) | 45Wx4 |
| Full Bandwidth Power (at less than 1%THD) |
21Wx4 | |
| Output frequency band | 20 - 20,000Hz | |
| Preout level (V) | 2.0V / 10k Ohms | |
| Preout impedance (Ω) | 1.4k Ohms | |
| Speaker Impedance (Ω) | 4-8 Ohms | |
| General | Operating voltage | 12V DC Car Battery |
| Installation Dimensions WxHxD | 182 x 112 x 153 (mm) 7-3/16 x 4-7/16 x 6 (inch) |
|
| Main Unit Installation size W x H x D(w/o sleeve) | 178 x 100 x 153 (mm) 7 x 3-15/16 x 6 (inch) |
|
| Weight Main unit | 1.8 kg / 4.0 lbs | |
| (Including Sleeve and Trim plate) | 2.0 kg / 4.4 lbs | |
