Kenwood DRV-A601WDP 4K Ultra HD Dual Dash Cameras Includes 2 Cameras
Kenwood DRV-A601WDP 4K Ultra HD Dual Dash Cameras Includes 2 Cameras
Couldn't load pickup availability
DRV-A601WDP
High Definition Recording & Wireless Link
Dual Camera package is equipped with 8.3 Megapixel* 4K (Front Camera) and 3.7 Megapixel Wide Quad Hi-Vision (Rear Camera) recording and provides easy data transfer to your smartphone through Wireless Link.
*In Dual Camera Mode, both cameras maximum recording resolution is 3.7 Megapixel. Rear cam must be turned off in menu setting to enable front cam 8.3 Megapixel recording.
Front & Rear Camera Package
DRV-A601WDP
8.3M & 3.7M Recording 3.0" LCD Display
Touch Panel Control
WDR
Wireless Link
Built-in GPS & G-Sensor
Parking Mode Recording
64GB microSD Included Quick Release
Front & Rear View Recording
The DRV-A601WDP includes 2 dash cams: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time. The rear dash cam includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record. When in Dual Camera Recording Mode, both cameras maximum recording resolution is 3.7 Megapixel (Wide Quad HD). Rear cam must be turned off in menu setting to enable front cam 8.3 Megapixel recording.
Polarized Filter Included (Front Camera)
Simply attach PL filter to front of lens to reduce windscreen glare/reflection.
The filter has a rotating bezel, so that you can setup the reflection free lens exactly how you need in your vehicle.
8.3 Megapixel Recording
(Front Camera)
8.3 & 3.7 Megapixel Recording
8.3 & 3.7 Megapixel Recording provides High Resolution Recording
8.3 & 3.7 Megapixel High Definition recording captures clear video even while driving.
3.7 Megapixel Recording
(Rear Camera)
WDR (Wide Dynamic Range) for Backlighting
Easily records clear images in dark or well lit settings without underexposing or overexposing the image.
3.0" LCD Display
(Front Camera Only)
Touch Panel Control
Wireless Link
Built-in
G-Sensor & GPS
Parking Mode
Super Capacitor
Quick Release
Supports micro SDXC/SDHC
MicroSDXCME Logo
microSDXC/SDHC card 8GB to 256GB supported.
SD Card Recorded File Capacity
8GB Micro SD = 18 mins (1 minute x 18 recordings)
16GB Micro SD = 36 mins (1 minute x 36 recordings)
32GB Micro SD = 72 mins (1 minute x 72 recordings)
64GB Micro SD = 144 mins (1 minute x 144 recordings)
128GB Micro SD = 290 mins (1 minute x 290 recordings)
256GB Micro SD = 580 mins (1 minute x 580 recordings)
*Based on default recording settings.
26'(8m) Rear Camera Cable
26' (8m) power & video cable enable you to install the rear camera inside your car, truck, or RV.
2V & 24V Compatible
Cameras work with both 12V and 24V applications.
Touch Panel Control
3.0" LCD Display with Touch Panel Control
Large touch display provides easy access to checking recorded videos and changing settings.
Wireless Link
Access Your Dash Cam Data Wirelessly
KENWOOD Dash Cam Manager App Icon Wireless Link App
Easily share recorded videos directly to social media using the KENWOOD DASH CAM MANAGER smartphone application (iOS 9.0+ or Android 5.0.2+)
DashCam Image Smartphone Image
Instruction Menus
Instruction Menus
GPS Information
GPS Information
Main Screen
Main Screen
Video Playback
Video Playback
KENWOOD VIDEO PLAYER
The KENWOOD VIDEO PLAYER is a desktop software for displaying video recorded with this device. Simply download the installer from the Kenwood site then install according to the on-screen instructions.
Enhanced Vehicle Monitoring & Protection
G-sensor & Built-in GPS
The DRV-A601W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.
G-sensor
Parking Mode Recording
Parking Mode Recording
When the vehicle is parked and turned off, parking mode becomes active. If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically record 30 seconds of video.
PowerCable
Buy Now
Product Registration
*Parking Mode Recording requires optional hardwire kit: CA-DR1030
Super Capacitor
If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor
Quick Release
Magnetic Mount
Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.
Magnetic Mount
2 Mounts Included for Front Camera
3M Tape Style
Suction Cup Style

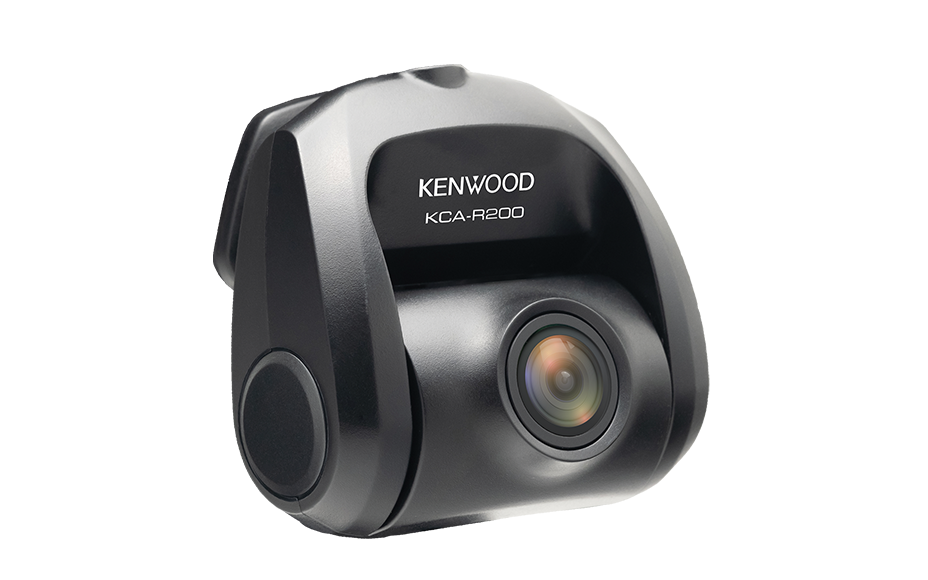

Adjustable Mounting Holder (Rear Camera)
Adjustable Rear Camera mounting holder enables viewing position change by up to 180 degrees.
SPECS
| Front Camera | Rear Camera | ||
| Hard Specification | Screen size | 3.0inches full color TFT | - |
| Operating voltage | 5V / 2A; 12-24V DC | DC 5V | |
| Current Consumption | 650mA | 120mA | |
| Super Capacitor | Yes | - | |
| Button | Touch Button | - | |
| Wireless Link | Yes | - | |
| Microphone | Built-in | - | |
| Speaker | Built-in | - | |
| GPS Receiver | Built-in | - | |
| G-sensor | Built-in | - | |
| Collision sensitivity | -4.0G to +4.0G (0.1G Step) | - | |
| Image sensor | 1/2.5 CMOS sensor | 1/2.8 CMOS sensor | |
| Valid Pixel | 8.57M Pixels (3864x2218) |
5.14M Pixels (2616 x 1964) |
|
| Number of Pixel | 8.48M Pixels (3872x2192) |
3.7M Pixels (2560 x 1440) |
|
| Angles of view | Horizontal : 129° Vertical : 72° Diagonal :130° |
Horizontal : 129° Vertical : 66° Diagonal :161° |
|
| Lens rotation | - | Yes(180∘) | |
| Image reversal (Upside down) | Yes | - | |
| Lens | F1.8 | F2.0 | |
| Polarization Filter | Bundled | No | |
| Operating temperature | -10℃ to +60℃ | -10℃ to +60℃ | |
| Noise Protection | Yes | Yes | |
| OSD Menu Language | Inmplemented languages | EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO | - |
| Recording Specification | Recording resolution | Single:3840 x 2160 4K Dual:1440P (Front) + 1440P(Rear) |
2560 x 1440 Quad HD |
| Frame rate | 30FPS | 30FPS | |
| HDR | - | - | |
| WDR | Yes | Yes | |
| Recording Mode | 1 / 3 / 5 min | - | |
| Voice recording | Yes(ON/OFF） | - | |
| Video format | H.264 / MOV | H.264 / MOV | |
| Audio format | Linear PCM | Linear PCM | |
| Picture format | JPEG (Max.3840 x 2160) |
- | |
| Recording media | microSDXC/SDHC card 8GB to 256GB UHS Speed Class 3 (U3) |
- | |
| Port | DC-IN | mini USB-B type | - |
| AV Out/HD Out | HDMI | - | |
| AV In (Rear Cam) | Yes | - | |
| SD Slot | microSD | - | |
| Size | Dimensions WxHxD(Main unit) | 106mm*50.5mm*40.5mm 4-3/16" x 2" x 1-9/16" |
63mm*66mm*36mm 2-1/2" x 2-5/8" x 1-7/16" |
| Dimensions WxHxD(Bracket attached) | 106mm*90mm*40.5mm 4-3/16" x 3-9/16" x 1-9/16" |
63mm*66mm*36mm 2-1/2" x 2-5/8" x 1-7/16" |
|
| Weight(Main unit) | 108g | 334g | |
| DC/Rear cam Cable Length | 4m | 8m | |
| Bundled Accessory | SD Card | microSD 64GB | - |
| DC Cable | Cigar Lighter Car Charger Adapter (12-24V, 4m) | Hardware Kit (12-24V, 4m) |
|
| Car Mount Bracket | J Type Mount(Build-in GPS) Mounting Bracket (3M Tape & Suction Cup) |
3M Tape | |
| Manual /Warranty card | Quick Start Guide | Yes | |
| USB Cable | Yes/110cm | - | |
| Spare 3M Adhesive Pad | Yes/2pcs | Yes/2pcs | |
| Cable Clips | Yes/4pcs | - | |
| Optional Accessory | Rear Cam | - | |
| Hardwire Kit | CA-DR1030 | - | |
| Application | PC Viewer | Windows/Mac | - |
| Requirement for Windows | Windows 10, 8.1, 7 | - | |
| Requirement for Mac | Mac OS X 10.11 (El Capitan) or later |
- | |
| Languages for PC Viewer | EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO | - | |
| Smartphone App | Android/iOS | - | |
| Requirement for Android | Android 5.0.2 and above | - | |
| Requirement for iOS | iOS 9.0 and above | - | |
| Languages for Smartphone App | EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO |
