Kenwood DRV-N520 HD DVR Drive Recorder DashCam Link for Select Kenwood Stereos

Kenwood DRV-N520 HD DVR Drive Recorder DashCam Link for Select Kenwood Stereos



DRV-N520

Multimedia compatible Dashboard Camera

• Connects to compatible KENWOOD Multimedia receivers
• Linking Video and Position
• Touch Control
• GPS Function
• 3 Megapixel Recording
• HDR
• Wide-angle lens
• Accident Avoidance Features
• Super Capacitor
• 4 types of recording mode
• Built-in G-Sensor
• KENWOOD Drive Reviewer

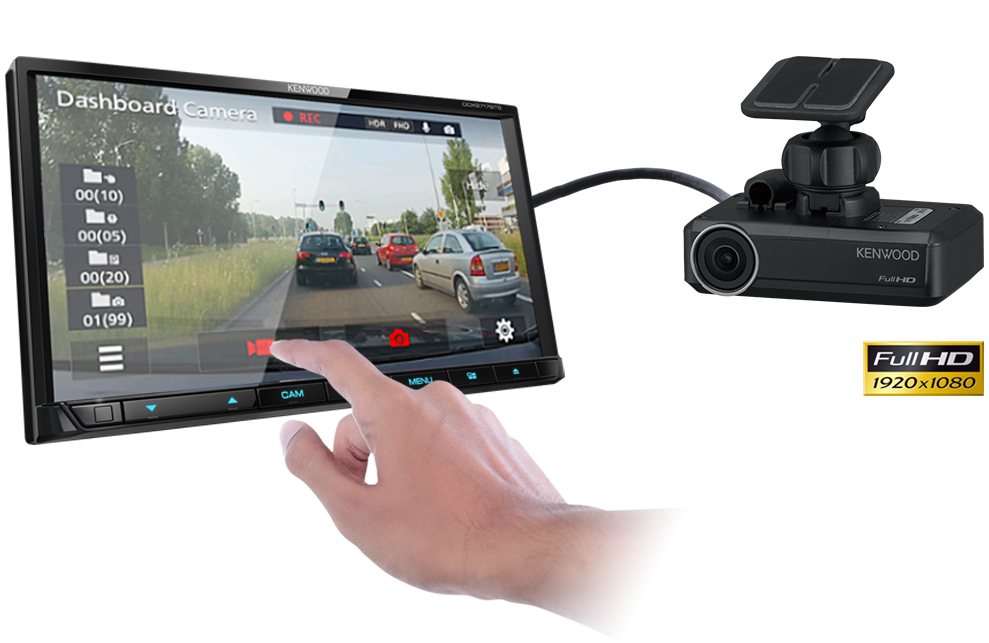

Connects to compatible KENWOOD Multimedia receivers

Dash Cam ready receivers are compatible with the DRV-N520 Dash Camera.

The camera records in full HD video capturing every event that occurs on the road ahead, and also provides safety features such as collision avoidance.



________________________________________

Linking Video and Position

Able to display driving footage, as well as direction and position of vehicle on the map when replaying video recordings. Records not only video but also map-linked data, by integrating highly-accurate positional data from the navigation system in the drive recorder.



*This function is available for DNX995S and DNX875S.

________________________________________

Touch Control

Recorded videos can be displayed on the large screen, and operated from the touch panel.

 Recording&Photo Shooting  Playback Control

 Combination Display(P in P)  Dashcam Setup

________________________________________

GPS Function

Using the receivers GPS more accurate location information is sent from the receiver and integrated as part of the dashboard camera video content.



3 Megapixel Recording

3 Megapixel Recording provides higher resolution than Full HD (1920 x 1080).



Capable of capturing a clear image of a license plate

________________________________________

HDR (High Dynamic Range) for Backlighting

Easily records clear images in dark or well lit environments without underexposing or overexposing the image.

 without HDR  with HDR

________________________________________

Equipped with wide-angle lens

The wide-angle lens (horizontal: approx. 117°; vertical: approx. 63°) captures video from a broad viewing perspective.



Accident Avoidance Features for Safer Driving

Equipped with the latest in accident avoidance sensor technology.

Collision Warning



Sensors detect the distance between your car and the vehicle ahead of you, and if a safe distance is not maintained a warning will sound.

Collision Avoidance works at 20 MPH and up.



Departure Delay

Warning



When your vehicle is at a full stop and the car in front of you starts to move forward, the departure delay warning sounds if your car fails to move forward. The system will also provide warning if your vehicle starts to move backward.



(The accident avoidance features are for providing safety support to drivers and in no way, shape or form is meant to substitute a drivers full attention to the responsibilities of driving. The features do not provide notification of all hazards encountered on the road.

* Some locations, such as tunnels or cityscapes with tall buildings, may encounter loss of GPS signals

* In some cases the shape of a vehicle, or color of paint may prevent. The sensors from detecting a vehicle

________________________________________

Super Capacitor

Prevents the recorded video file from being corrupted due to lost power, as it provides enough power to allow the video file to close properly.





________________________________________

4 types of recording mode



Recording starts as soon as the vehicle starts. In continuous recording mode. The oldest files are deleted when storage capacity has been exceeded.



Pressing the Rec button on the device takes the camera out of continuous record mode. The recording time of manual recording is 10 seconds before the manual recording button was pressed plus the time set for "Manual Recording Time."



When an event such as a collision occurs during continuous recording "Event Recording" automatically starts record of the event. The recording time of event recording is 10 seconds before the event was detected plus the time set for "Event Recording Time."





When the vehicle is parked and turned off, parking recording mode becomes active. If the vehicle is subject to a collision, or similar event, power is supplied to the camera and parking recording starts. When recording ends, parking record status resumes.

________________________________________

Built-in G-Sensor

When the G-Sensor detects any sudden motion, DRV-N520 will automatically save and lock the recording to protect it from being deleted. The integrated 3-axis sensor records G-force which shows the direction and the strength of possible impact.





KENWOOD Drive Reviewer

KENWOOD Drive Reviewer is a PC application that displays video recorded by the DRV-N520 with greater detail.
