Crimestopper BSD-754 Universal Blind Spot Detection System - Front & Rear, Black
Universal Blind Spot Detection System - Front & Rear, Black
The CrimeStopper BSD-754 is a blind spot detection system. What this system does is alert
you that there may be something in your blind spot while driving. It has visual and audible
alerts to signal you that there may be something in your blind spot.
(4) Waterproof Design sensors (2 front, 2 rear)
(2) LED indicators
Alerts driver of danger in blind spots

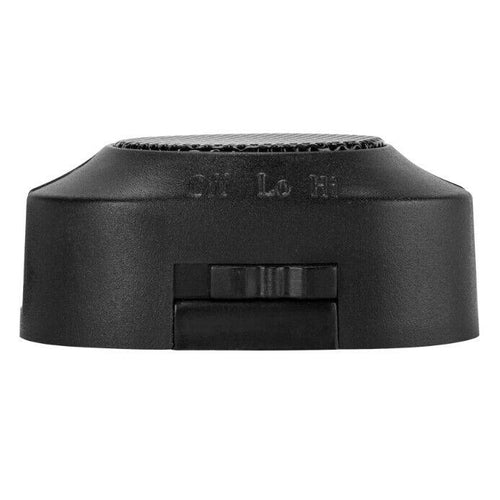

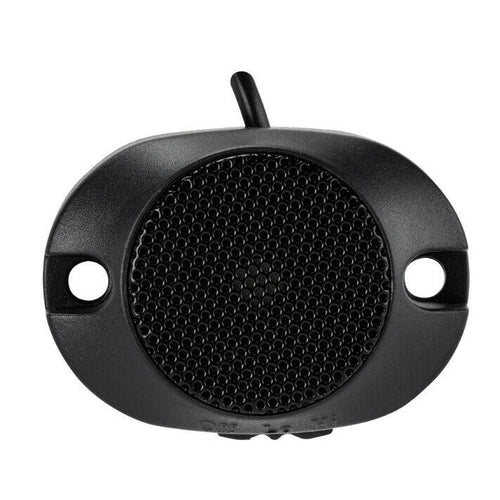

External speaker with volume adjustment
Visual and audible warnings
Sensors can be painted to match vehicle
Hole saw included
The CrimeStopper BSD-754 is a blind spot detection system that will alert you visually
and/or audibly if there is something in your blind spot.

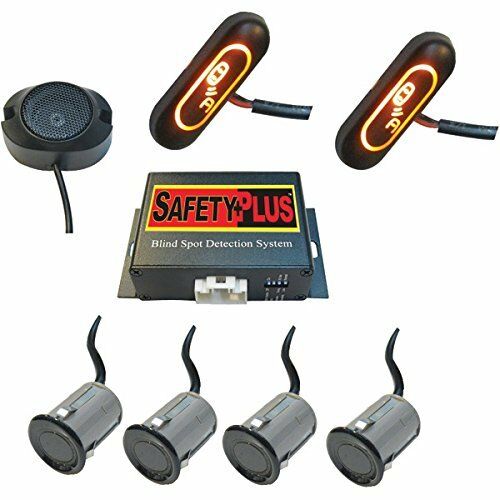

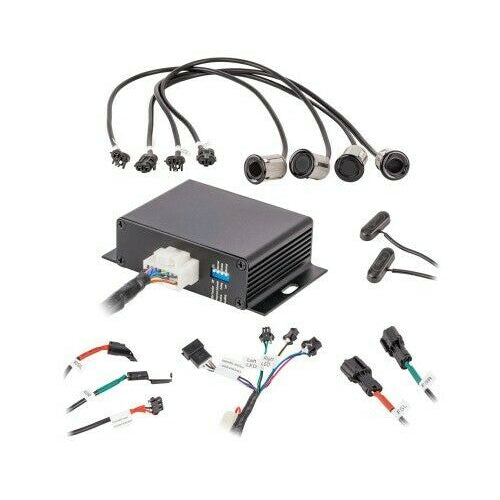

This system comes with (4) sensors (2 in for the front, 2 for the rear), (2) led indicators (1 per side), (1) warning buzzer,

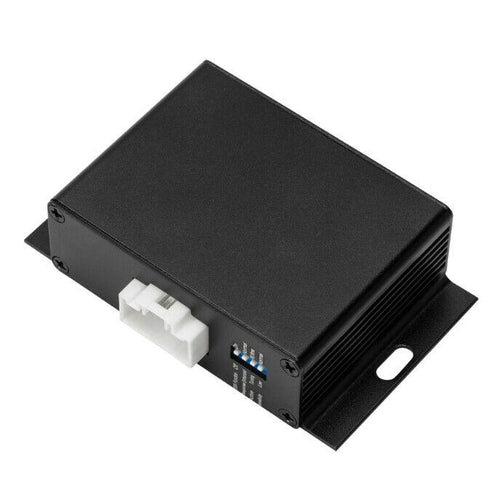

main control unit and hole saw for the sensors.
The 2 sensors in the front are so that the system can tell the main unit not to trigger once the rear
sensors pick up the object, for instance if you are passing a vehicle or a barrier it will not trigger because the sensor picked up the sensor as well.
The rear sensors will pick up and alert of a vehicle coming along side of
you from the rear and once the front sensors pick up on the vehicle they
will stop with the alert. The led visual alerts are triggered when the rear
sensors pick up something in your blind spot. The led and warning buzzer
are activated when you use your turn signal and there is something in your blind spot.
The hole saw is the perfect size for the sensors. Each sensor has an arrow
on them indicating which side should be in the up position. The sensors can
be lightly painted to better match the vehicle if desired (never used metalized
paint when painting any sensor). Be sure to test the vehicle in an open area with
at least 15 feet on all sides to avoid any possible false alerts.
Sensor Type - (4) High-speed frequency
Sensor Range - 13 Ft.
Visual Indication -LED
Audible Indication - Buzzer (Volume Adjustable)
Operating Temperature - -31°F - 185°F (-35°C - 85°C)
Power Source - DC 10V - 16V
Power Consumption - ≤200mA
Waterproof - Sensors Only (IP68)
Hole Saw Size - 22 MM
Main Cable Length - 15⅜ Ft
Sensor Cable Length - 1⅞ Ft
Sensor Cable Ext Length - Front: 11⅜ Ft / Rear: 7⅝ Ft
Indicator Cable Length - 1¼ Ft
Audible Alert Cable Length - 2½ Ft
Module: 2⅜"(L) × 4"(W) × 1"(D)
Buzzer: 1⅜"(L) × 2"(W) × ⅞"(D)
LED Indicators: ⅜"(L) × 1⅛"(W) × ¼"(D)
