Crimestopper SV-6836.TAC 170-degree Tail Gate Handle CMOS Camera FAST SHIPPING

Crimestopper SV-6836TAC

170-degree Tail Gate Handle CMOS Camera

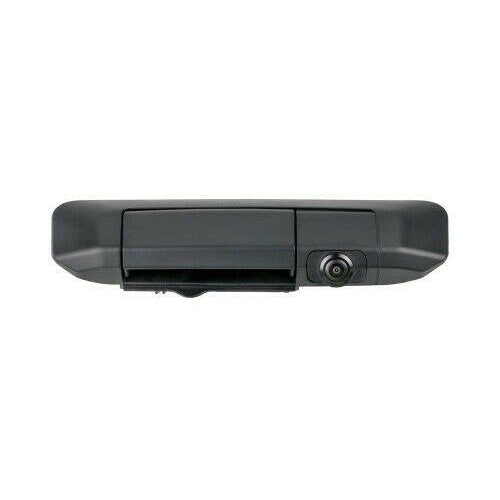

The CrimeStopper SV-6836.TAC is a replacement tailgate handle with a built-in camera for the

2005-2015 Toyota Tacoma. This is designed to replace the OEM handle while keeping the OEM functions and

adding a much needed camera.

FEATURES:

2005-2015 Toyota Tacoma truck tailgate handle camera

170⁰ viewing angle

Handle, linkage and camera all in one for direct swap

Selectable parking assist lines

Constructed from high-grade plastic

Replaces OEM tailgate handle

Waterproof design

The CrimeStopper SV-6836.TAC is a replacement tailgate handle with a built-in 170° viewing angle camera for

the 2005-2015 Toyota Tacoma. This is a direct replacement for the tailgate handle that comes on the vehicle.

This will add a reverse camera option with no drilling of holes. All of the linkage mounting points are all the same

as the factory so that you will have a direct swap of parts with no need to modify any parts.

The only thing you will need to do is route the harness out of the tailgate and underneath the truck to the monitor

in the vehicle. The wiring is pre-loomed so you can run the wiring without having to worry about the elements.

This system offers selectable parking assist lines, meaning you can have them on or off.

SPECS:

Image Sensor

CMOS

Dimensions

2¼"(L) × 9¾"(W) × 1⅞"(D)

Resolution

420 TV Lines / 648px(H) × 488px(V)

Minimum Illumination

0.5 LUX / F1.2

Horizontal Angle

170°

Vertical Angle

90°

Video System

NTSC / PAL

Video Output

RCA 1.0Vp-p Composite (75 Ohm load)

Power Source

DC 12V

Power Consumption

150mA Max

Electronic Shutter

1/50s - 1/100000s

Gamma Correction

0.45

Operating Temperature

-22°F - 158°F (-30°C - 70°C)

Waterproof

IP67 - IP68

Night Vision

No

Normal/Reverse Image

Reverse Image

Parking Lines

Yes (Selectable)

Audio Out

No

Camera Cable Length

5¾ Ft

Power Cable Length

23¼ Ft

Video Cable Length

23¼ Ft
