Crimestopper

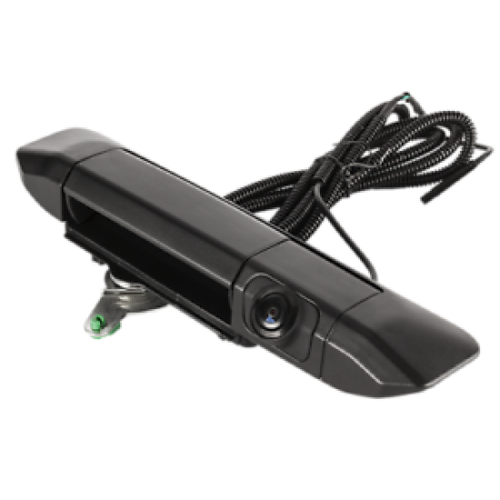

Crimestopper SV-6836TOY Tailgate Handle Camera for 2007-2013 Toyota Tundra
Crimestopper SV-6836TOY Tailgate Handle Camera for 2007-2013 Toyota Tundra
Crimestopper SV-6836TOY
Tailgate Handle Camera for 2007-2013 Toyota Tundra
The CrimeStopper SV-6836.TOY is a replacement tailgate handle with a built-in camera for the
2007-2013 Toyota Tundra. This is designed to replace the OEM handle while keeping the OEM functions
and adding a much needed camera.
Features:
2007-2013 Toyota Tundra truck tailgate handle camera
170⁰ viewing angle
Handle, linkage and camera all in one for direct swap
Selectable parking assist lines
Constructed from high-grade plastic
Replaces OEM tailgate handle
Waterproof design
SPECIFICATIONS
Image Sensor
CMOS
Dimensions
3¾"(L) × 10⅛"(W) × 3"(D)
Resolution
420 TV Lines / 648px(H) × 488px(V)
Minimum Illumination
0.5 LUX / F1.2
Horizontal Angle
170°
Vertical Angle
90°
Video System
NTSC / PAL
Video Output
RCA 1.0Vp-p Composite (75 Ohm load)
Power Source
DC 12V
Power Consumption
150mA Max
Electronic Shutter
1/50s - 1/100000s
Gamma Correction
0.45
Operating Temperature
-22°F - 158°F (-30°C - 70°C)
Waterproof
IP67 - IP68
Night Vision
No
Normal/Reverse Image
Reverse Image
Parking Lines
Yes (Selectable)
Audio Out
No
Camera Cable Length
5¾ Ft
Power Cable Length
23¼ Ft
Video Cable Length
23¼ Ft
About:
The CrimeStopper SV-6836.TOY is a replacement tailgate handle with a built-in 170° viewing angle camera for
the 2007-2013 Toyota Tundra. This is a direct replacement for the tailgate handle that comes on the vehicle.
This will add a reverse camera option with no drilling of holes. All of the linkage mounting points are all the same
as the factory so that you will have a direct swap of parts with no need to modify any parts.
The only thing you will need to do is route the harness out of the tailgate and underneath the truck to the monitor
in the vehicle. The wiring is pre-loomed so you can run the wiring without having to worry about the elements.
This system offers selectable parking assist lines, meaning you can have them on or off.
