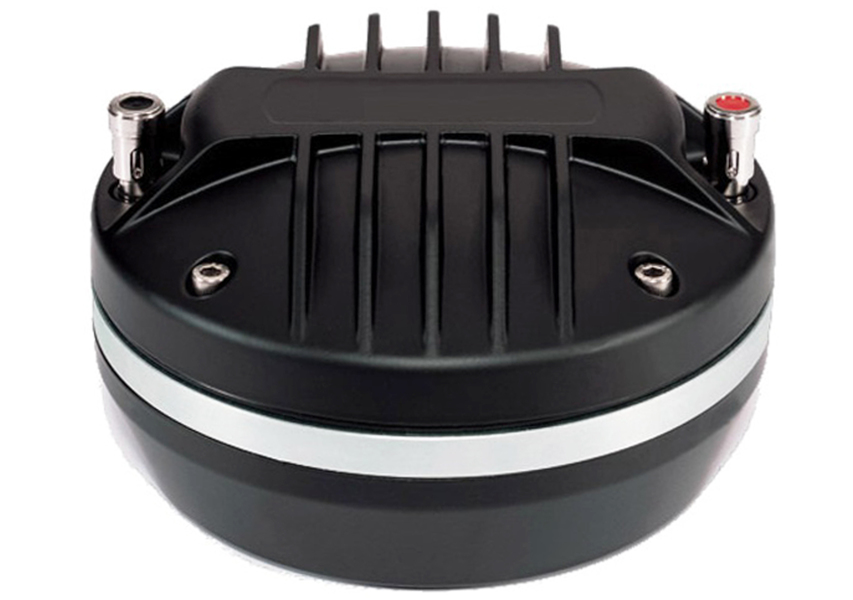

DE1085TN B AND C Compression driver Speaker 8 ohm, 2.0 inch throat diameter NEW

DE1085TN B AND C Compression driver Speaker 8 ohm, 2.0 inch throat diameter NEW

$649.00
$649.00
Sale Sold out
BRAND NEW

DE1085TN B AND C

Compression driver Speaker 8 ohm, 2.0 inch throat diameter

  • The DE1085TN is the latest version of our premium 100mm (4.0 in) voice coil, neodymium high frequency driver. The diaphragm in this model has been completely redesigned to incorporate a bent edge voice coil former as well as new dome and surround geometry. These modifications combine to better control diaphragm displacement and deformations, resulting in lower distortion and a smoother higher frequency response above 10kHz.
  • 280 W continuous program power capacity
  • 2" horn throat diameter
  • 100 mm (4 in) aluminium voice coil
  • Titanium diaphragm
  • 500 - 20000 Hz response
  • 109 dB sensitivity
  • Neodymium magnet assembly with shorting copper cap
  • Dimensional category 6 inch
  • Front Shape Cylindrical
  • Exit diameter compression driver 2 inch
  • Magnet type Neodymium
  • Nominal impedance 8 ohm
  • Zmin 7.7 ohm
  • Nominal power handling 35 W
  • Max power handling 70 W
  • Sensitivity 108 dB
  • Frequency response 500-20000 Hz
  • Recommended min cutoff frequency 800 Hz
  • Driver mounting system 4 points on diameter 101.6 mm
  • Driver dimensions mouthing holes 6.0 mm
  • Voice coil diameter 4 inch
  • Flux density 1.95 T
  • External diameter 154 mm
  • Depth 86 mm
  • Le 0.18 mH
  • Fixation 4 points on diameter 101.6 mm
  • Diaphragm material Titanium
