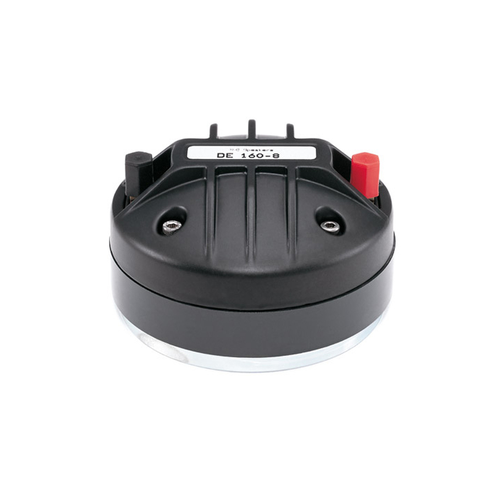

DE160 B AND C 1" Mylar Compression Driver 8 Ohm 2-Bolt NEW

DE160 B AND C 1" Mylar Compression Driver 8 Ohm 2-Bolt NEW

$145.50
$145.50
Sale Sold out
BRAND NEW

DE160 B AND C

1" Mylar Compression Driver 8 Ohm 2-Bolt

  • B&C's DE160 1" high frequency compression driver is compact, efficient, and extremely robust. Its output extends to 18,000 Hz, with a smooth sound characteristic devoid of artifacts common to alternative, metal-diaphragm HF drivers. The DE160 is perfect for compact 2-way loudspeaker systems, as well as the tweeter component in larger 3-ways.
  • Low mass Mylar diaphragm for smooth, non-fatiguing output
  • 1.7" diameter aluminum voice coil handles high input power
  • Very high sensitivity and smooth response
  • Compact yet powerful FEA-optimized ceramic ferrite magnet structure
  • Dimensional category 4 inch
  • Front Shape Cylindrical
  • Exit diameter compression driver 1.0 inch
  • Magnet type Ferrite
  • Nominal impedance 8 ohm
  • Zmin 7.8 ohm
  • Nominal power handling 50 W
  • Max power handling 100 W
  • Sensitivity 107 dB
  • Frequency response 1000-18000 Hz
  • Recommended min cutoff frequency 2000 Hz
  • Driver mounting system 2 points on diameter 76 mm
  • Driver dimensions mouthing holes 6.0 mm
  • Voice coil diameter 1.7 inch
  • Flux density 1.5 T
  • External diameter 102 mm
  • Depth 61 mm
  • Le 0.11 mH
  • Fixation 2 points on diameter 76 mm
  • Diaphragm material Mylar
