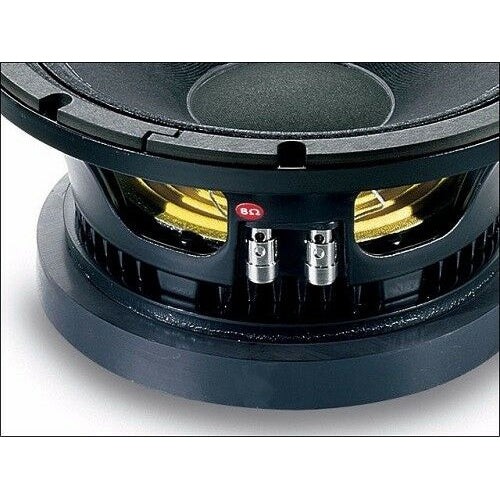

Eighteen Sound 10M600 10" High Output Midrange Speaker - Single - 18 Sound
DESCRIPTION:
The 10M600 is a top performance 10" ferrite midrange driver which offers high power handling capability
with exceptional sensitivity over the middle frequency band. It is suitable for either direct radiating or horn loaded
applications as part of a 3 or 4-way auditorium, touring, or outdoor festival sound system. It is the result
of an intensive development program which aimed to produce the best 10" ferrite midrange driver available.
The smooth curvilinear paper cone has a special high strength wood pulp composition and has been designed
to achieve the best possible linearity within the middle frequency range and to control bell-mode resonances
around the cone circumference. The cone is carried by a double half-roll suspension composed of a material
which is more resistant to aging and fatigue than traditional materials, providing the correct damping and
excursion control. The 75 mm state-of-the-art voice coil assembly incorporates a fine edge-wound aluminum
wire together with a strong fiberglas former to get the necessary force factor, mass lightness and high power
handling. The voice coil is cooled using airways between the chassis back plate and the magnet face plate,
which allow heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket.
This technology is another product of 3D CAD resource application by our engineers. The magnetic structure
has also been optimized using our in-house FEA CAD resource which has maximized the flux density
in the voice coil gap. A special treatment is applied to both the top and back plates making them more
resistant to the corrosive effects of salts and oxidation. This treatment is
more effective than any other treatment in use today.
FEATURES:
10" Diameter
400W AES,
3" Voice Coil
102 dB Sensitivity
80-5200 Hz
General Specifications:
