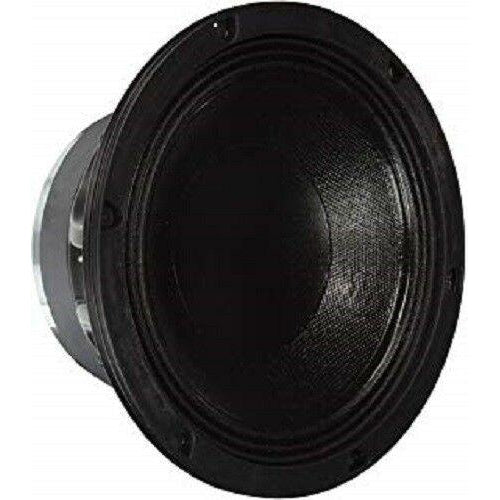

Eighteen Sound /18 Sound 10NW650 - 10" Neodymium Speaker WEATHER PROTECTED
Eighteen Sound /18 Sound 10NW650 - 10" Neodymium Speaker WEATHER PROTECTED
Couldn't load pickup availability
Description
The 10NW650 is a neodymium 10 inch size woofer. The transducer has been developed
in response to a specific market requirement for a light weight design that combines excellent
linearity with high power handling capabilities. The 10NW650 is primarily intended for use as a low
frequency driver for line-arrays as well as high quality 2-way or multiway reflex enclosures.
The low pass filter might be positioned as high as 2000Hz. The high grade neodymium magnet
assembly assures high flux concentration and low power compression. The levels of force factor
and power handling are, as a consequence, at the upper professional level with best power
to weight ratio. The 65mm Ø state-of-the-art, edgewound aluminum wire voice coil is wound
on a high strength fiberglas former. The voice coil is cooled through airways placed between
the chassis back plate and the magnet faceplate and carefully designed ventilation ducts
made into the metal back plate. The curvilinear paper cone is formed using a special high
strength wood pulp, designed to achieve the best possible rigidity and stiffness. Due to
the increasing use during outdoor audio events, the ability to perform in humid environments
is an extra key feature of the 10NW650. This is achieved trough an exclusively developed cone
treatment which renders the cone humidity repellent while does not increasing the total moving
speaker mass. In addition, a special epoxy treatment is applied to the top and back plates making
the transducer far more resistant to the corrosive effects of salts and oxidization.
Key Features
§ 96 dB SPL 1W / 1m average sensitivity
§ 65 mm (2.5 in) aluminum edgewound voice coil
§ 600 W program power handling
§ High excursion design for low frequency clarity and punch
§ Weather protected cone and coated plates for outdoor usage
§ Ultra lightweight design
§ Suitable for line array applications and multiway systems
