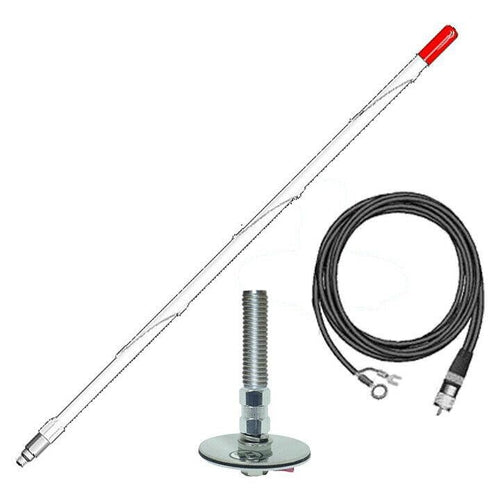

No-Ground Plane Non-Metallic CB Antenna Kit (FG2DDW) by FireStik®. Roof Mounted, 2' Fiberglass Top-Loaded Antenna. Includes the Tunable-Tip Firestik® II Style Antenna, microphone hanger, complete instructions. The FG2-DD series NGP CB antenna kit were specifically designed to solve the lack of ground plane (counterpoise) problems found on vehicles constructed of plastic, fiberglass, wood or aluminum. This includes, but is not limited to, motorhomes, boats, automobiles and 18-wheeler trucks. Ground plane problems typically show up in the form of high standing wave ratio (SWR) and poor performance. The isolated ground plane that is built into the FG2-DD series kits will also alleviate problems on metal base vehicles that lack the sufficient ground plane for proper operation. This could be due to the size of available ground plane (ATV, bicycle, motorcycle, wheelchair, etc.), or because the operator chooses to mount the antenna in a location that is unable too properly take advantage of available ground plane. The FG2-DD series kits are designed for mounting on a flat horizontal surface. They are the ideal choice for motorhome roofs, the deck of a boat, the roof of a pick-up camper or cap, the trunk deck of a Corvette, or the roof of a fiberglass or aluminum 18-wheeler tractor. The installed height above roofline, including the spring and antenna is just less than 29" (737 mm).
Specifications:
Antenna Length: 2'
Coax Cable Length: 17'
Mount Type: Disc Mount for Drilling Through Roof
Features:
5 Year Warranty for Antenna
2 Year Warranty for Mount & Spring
1 Year Warranty for Coax Cable Assembly
Meticulously designed to deliver solid performance
Made using the latest in modern technology and advanced processes
Will help optimize the operation and style of your vehicle
Includes:
17' specialty no-ground coax cable
2'-5/8 wave antenna
Stainless Steel Disc Roof Mount
Medium duty stainless steel spring
Antenna Cap
Installation Manual
