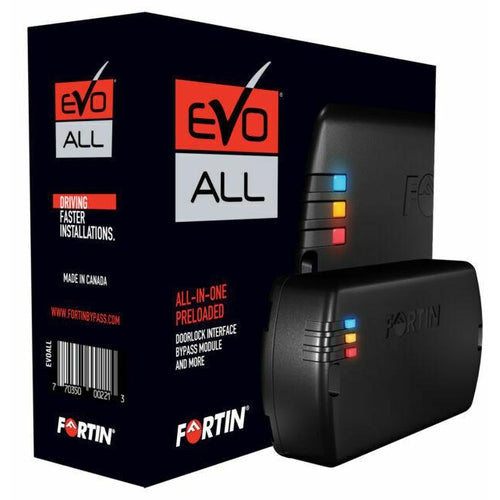

Fortin EVO-ALL Fortin Universal All-In-One Data Bypass And Interface Module

by Fortin

Fortin Universal All-In-One Data Bypass And Interface Module.

Multi Series Universal Doorlock Interface & Immobilizer -

Universal All-In-One Data Bypass and Interface Module.

The EVO-ALL is an ALL-IN-ONE data immobilizer bypass and doorlock interface combo module. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.

Product Features

3x on-board LEDs for simplified programming and diagnostics.

1x preloaded firmware for maximum compatibility. [1]

4-wire Fortin 2-way datalink port for data-to-data (RS-232) communication with datalink equipped remote-starters and security-systems.[2]

20-wire general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.

Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Communication Ports

3x CAN-Bus controllers.

3x General purpose controllers (J1850, Class 2, encrypted key etc.).

2x On-board Relays (SPDT).

1x Analog Controller 0-12VDC @ 20mV steps (Passlock, MUX).

1x TB control port for TB-series modules. [3]

Parts Included

1x EVO-ALL control module (firmware preloaded). [4]

1x 44-page Installation and programming guide. [4]

1x 20-pin General purpose harness [5].

1x 4-pin Fortin 2-way data-link harness. [2]

1x 5-pin CAN-Bus harness.

1x 6-pin Relay harness. [5]
