Fortin EVO-GMT2 PRELOADED MODULE & T-HARNESS COMBO FOR CADILLAC, CHEVROLET & GMC

Fortin EVO-GMT2

PRELOADED MODULE & T-HARNESS COMBO

FOR CADILLAC, CHEVROLET & GMC

**Replaced with Part number THAR-GM4

The EVO-GMT2 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start

interface with T-Harness combo module for 2007+ Cadillac, Chevrolet & GMC full size vehicles.

It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture

with 10 separate communication ports that provide more complete functionality on every supported vehicle.

Works with Flashlink Manager, RF Kits, Dcryptor, External Triggers

ADVANCED FEATURES REMOTE STARTERS ALARM SYSTEMS IMMOBILIZER BYPASS GPS SYSTEMS

ADVANCED FEATURES

Built-in advanced features for installations.

BUILT-IN ALARM SYSTEM OEM REMOTE MONITORING STAND ALONE REMOTE STARTER

3 x On-board LEDs for simplified programming and diagnostics.

1 x Preloaded firmware for maximum compatibility.

1 x Factory Fit T-Harness for easy install.

1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems.

1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.

Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

PRODUCT SPECIFICATIONS

3 x CAN-Bus controllers.

3 x General purpose controllers (J1850, Class 2, encrypted key etc.).

1 x On-board relay (SPDT).

1 x On-board relay (DPDT).

1 x Analog controller 0-12VDC @ 20mV steps (Passlock, MUX).

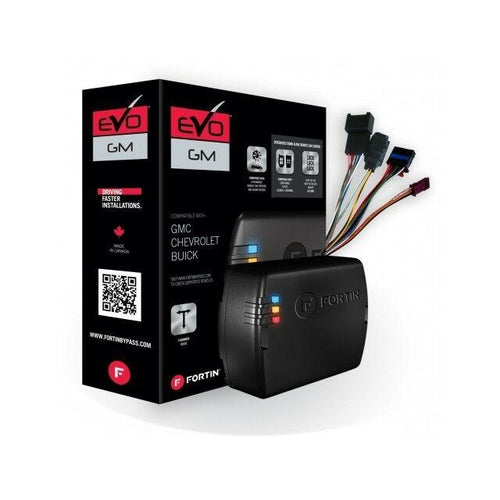

PARTS INCLUDED

1 x EVO-ALL control module (firmware preloaded).

1 x Warning label.

1 x 4 Pin Fortin 2-way data-link harness.

THIS PRODUCT REQUIRES PROFESSIONAL INSTALLATION
