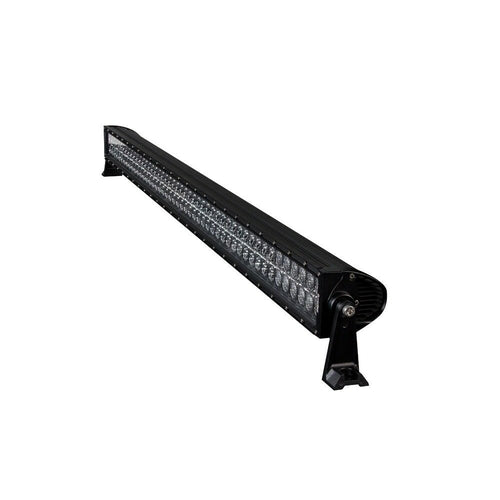

Heise HE-DR50 DUAL ROW LED LIGHTBAR

Heise HE-DR50

DUAL ROW LED LIGHTBAR

Advanced thermal management- short circuit and open circuit protection and many other innovative features.

Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one lightbar.

Heavy duty rubber foot mounts help reduce vibration for LED lightbars anywhere.

SPECS

Input Voltage: 10-30V DC

Power Consumption: 288W

(96-3W CREE LEDs)

Lumen Flux: 23040lm

Color Temperature: 6000K

Beam Pattern: Combo-Flood(90deg)-Spot(8deg)

CONSTRUCTION

Housing Material: Die-cast Aluminum Housing

Housing Color: Black

Lens Material: PC

Mounting Bracket: Die-cast Aluminum

Hole Dimensions: Brackets turned inward – 49.50in

Brackets turned outward – 51.75in

Mounting Bolt Drill – .25in

Electronics: Integrated-Epoxy Encapsulated

Hardware: Stainless 316

OPERATION

Operating Temperature: -40degC to +60degC

IP Rating: IP67

Protections: Reverse Polarity
