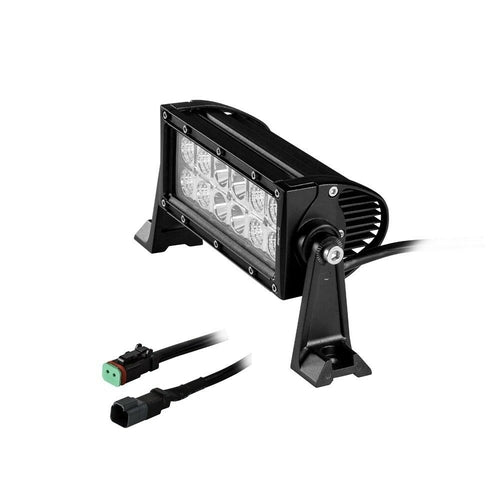

Heise HE-DR8 8 INCH DUAL ROW LED LIGHTBAR Brand New

Heise HE-DR8

8 INCH DUAL ROW LED LIGHTBAR

Advanced thermal management- short circuit and open circuit protection and many other innovative features.

Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one lightbar.

Heavy duty rubber foot mounts help reduce vibration for LED lightbars anywhere.

SPECS

Input Voltage: 10-30V DC

Power Consumption: 36W

(12-3W CREE LEDs)

Raw Lumens: 2880

LUX @ 10M: 215

Color Temperature: 6000K

Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

Housing Material: Die-cast Aluminum Housing

Housing Color: Black

Lens Material: PC

Mounting Bracket: Die-cast Aluminum

Length of Bar without Mounting Brackets: 8"

Hole Dimensions: Brackets turned inward - 7.25"

Brackets turned outward - 9.5"

Mounting Bolt Drill - .25"

Height of Light Bar Itself: 3"

Depth of Light Bar Itself: 3.50"

Electronics: Integrated-Epoxy Encapsulated

Hardware: Stainless 316

OPERATION

Operating Temperature: -40°C to +60°C

Current Consumption: 1.9 amps @ 13.8 volts

IP Rating: IP68

Protections: Reverse Polarity

Input Voltage: 10-30V DC

Power Consumption: 36W

(12-3W CREE LEDs)

Lumen Flux: 2880lm

Color Temperature: 6000K

Beam Pattern: Combo-Flood(90deg)-Spot(8deg)

CONSTRUCTION

Housing Material: Die-cast Aluminum Housing

Housing Color: Black

Lens Material: PC

Mounting Bracket: Die-cast Aluminum

Hole Dimensions: Brackets turned inward – 7.25in

Brackets turned outward – 9.5in

Mounting Bolt Drill – .25in

Electronics: Integrated-Epoxy Encapsulated

Hardware: Stainless 316

OPERATION

Operating Temperature: -40degC to +60degC

IP Rating: IP67

Protections: Reverse Polarity
