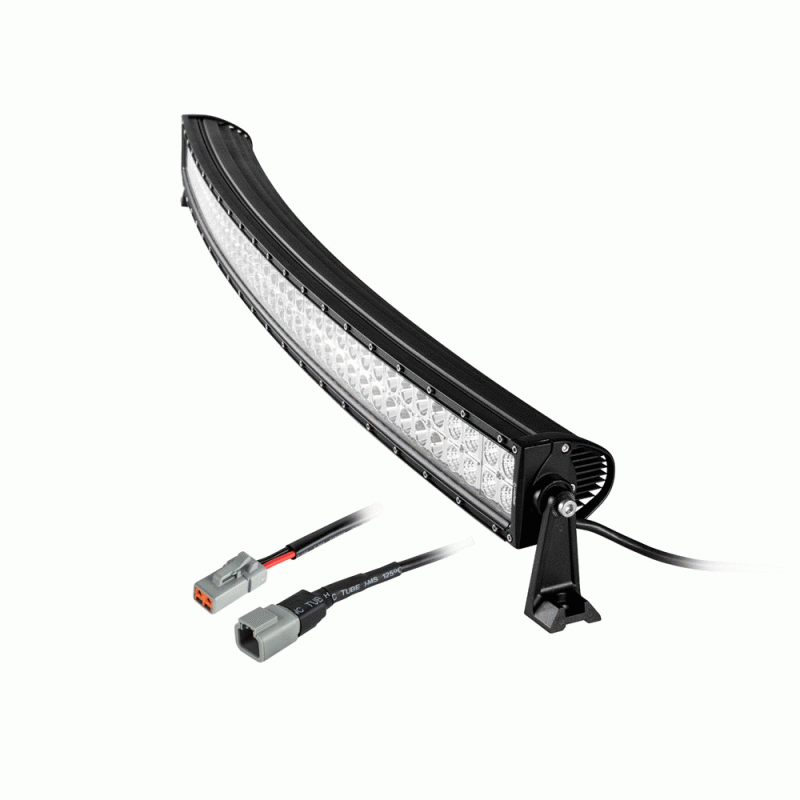

Heise HE-DRC30 30 Inch DUAL ROW CURVED LIGHT BAR
Heise HE-DRC30 30 Inch DUAL ROW CURVED LIGHT BAR
Heise HE-DRC30
30 Inch DUAL ROW CURVED LIGHT BAR
Advanced thermal management- short circuit and open circuit protection and many other innovative features.
Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one lightbar.
Heavy duty rubber foot mounts help reduce vibration for LED lightbars anywhere.
SPECS
Input Voltage: 10-30V DC
Power Consumption: 180W
(60-3W CREE LEDs)
Lumen Flux: 14400lm
Color Temperature: 6000K
Beam Pattern: Combo-Flood(90deg)-Spot(8deg)
CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 29.50in
Brackets turned outward – 31.75in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: -40degC to +60degC
IP Rating: IP67
Protections: Reverse Polarity
