Heise HE-WRC WIRELESS REMOTE HARNESS CONTROLLER

Heise HE-WRC

WIRELESS REMOTE HARNESS CONTROLLER

SPECS

Frequency: 433MHZ

Effective distance: 50m

Compatible with: All Heise Wiring Harnesses

FUNCTIONS

On-Off model

9 flash patterns

SOS emergency mode

Simple Plug-n-Play Connection: Unplug Rocker

Switch from Heise Wiring Harness

HE-WRC (Wireless Remote Control)

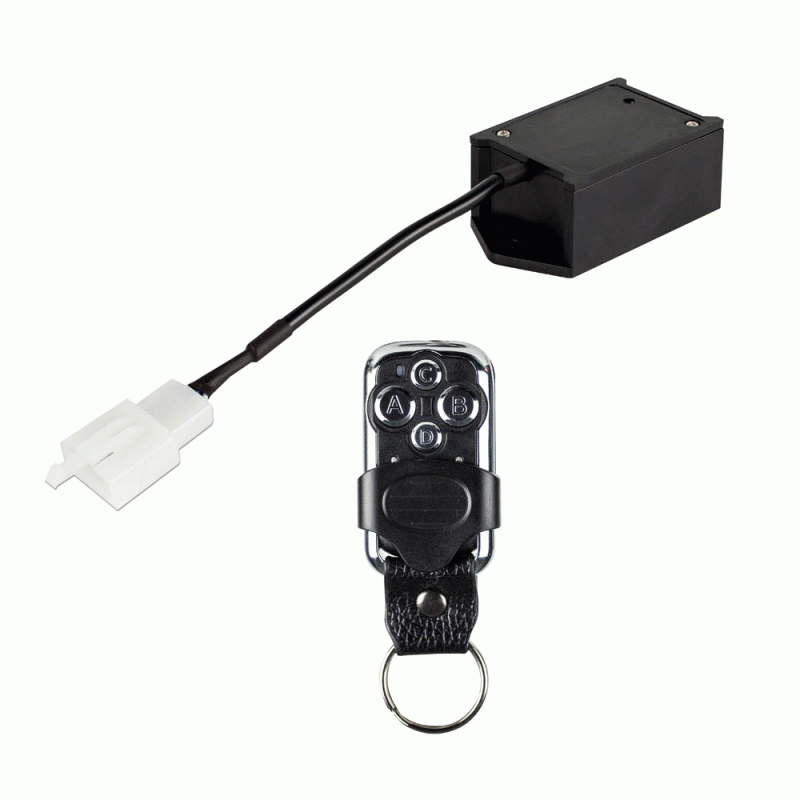

The HE-WRC is a wireless remote control and receiver designed to be used with the HEISE LED light bars and cubes and the HEISE wire harnesses. The HE-WRC offers on/off function and 9 different flash options.

Below are the functions of the HE-WRC: A – Turns the light bar/cubes on and off

B (1 time) – Flash 3 times quickly then quick pause, flashes 3 times quickly then quick pause, repeats over and over

B (2 times) – flashes quickly for 3 seconds then slow flashes for 5 seconds, repeats over and over

B (3 times) – alternates on and off somewhat fast (like a turn signal)

B (4 times) – flashes on/off/on/off then pauses, flashes on/off/on/off then pauses, repeats over and over

B (5 times) – flashes on then off and repeats, slower flash than B 3 times

B (6 times) – starts flashing on and off fast then slows down, repeats

B (7 times) - starts flashing on and off slow then speeds up, repeats

B (8 times) – flashes one time fast then pauses, flashes two times fast then pauses, flashes 3 times fast then pauses...etc...

C – Each push goes in reverse order as B D – S.O.S. flash pattern

Connection of the HE-WRC is simple; using the HEISE HE- DLWH1, HE-SLWH1, or the HE-SLWH2 wiring harness, disconnect the on/off rocker switch at the white 3 pin connector:

Now plug the HE-WRC receiver box into the white 3 pin connectors of the rocker switch side and the wire harness side. Now you have successfully added wireless control capability to your HEISE lighting. Now secure the HE-WRC receiver box either by screws or wire ties.

Remote Control Programming

The remote already comes programmed to the receiver box however there may be a time where you need to replace the remote or there are two receiver boxes that you want to control with one remote or even using two HE-WRC’s and the remotes interfere with each other and you want to separate them. Follow the steps below to program or delete a remote:

To Program a remote:

1. Start by having the HE-WRC connected to the HEISE wire harness and connected to lights.

2. Push the Reset button on the top of the receiver unit till the LED lights/cubes flash twice (it will be immediate).

3. Now push any button on the wireless remote within 5 seconds and the LED lights/cubes will flash 3 times to indicate the remote is programmed.

To clear remotes:

1. Start by having the HE-WRC connected to the HEISE wire harness and connected to lights.

2. Push and hold the Reset button on the top of the receiver unit till the lights flash 5 times.

3. The remotes are now cleared from the memory and no remotes will work. You must now program a remote in order for the HE-WRC to operate properly.

Wire colors for HE-WRC:

Female pin side, this side plugs into the rocker switch:

Blue - 12 volt output to illuminate the switch Black - Ground

White – 12 volt power

Male pin side, this side plugs into the harness going to the relay:

Blue – 12 volt output to relay Black – Ground White - 12 volt power
