Hifonics ZS693 6x9" 800 Watt Car Audio Coaxial Speakers FAST SHIPPING
Hifonics ZS693 6x9" 800 Watt Car Audio Coaxial Speakers FAST SHIPPING
Hifonics ZS693 6x9" 800 Watt Car Audio Coaxial Speakers
HIGHLIGHTS:
Pair Hifonics ZS693 6x9" 800 Watt Car Audio Speakers. Tweeter Dome Material: Neo-Mylar Soft Dome Tweeter - Impact Resistant Tweeter
Elements. Surround:Rubber - Moisture Resistant Rubber Surround with high Mid-Bass Impact. Cone:Alpha-Cellulose Cones
- Light weight for speed and very rigid for deep bass.
Surround / Cone Coupling:High Temperature Adhesive - Special adhesive is chosen to create a permanent bond between the cone and the surround.
Tinsel Leads:Braided - Highly conductive while remain flexible during high power applications. Voice Coil:Pure Copper
- Creates strong magnetic field with a very thin extrusion.
Voice Coil Former:Kapton - Lightweight and efficiently dissipates heat. Spider:Epoxy infused Natural Fiber - Natural fiber allows flexibility
while the epoxy which gives strength during the manufacturing process. Cooling System: Overcoil - Air is exchanged over the voice coil through the spider.
Specifications: RMS Power Handling (CEA426B): 60 Watts (Per Speaker) / 120 Watts (Per Pair). Maxx Power: 400 Watts (Per Speaker)
/ 800 Watts (Per Pair). Speaker Impedance: 4 Ω. Frequency Response +/- 3dB: 46Hz-20kHz. Sensitivity (1 watt/1 meter): 88 db.
Crossover Point: 1K Hz + 3K. Crossover Slope: 12dB. Mounting Diameter/Cut Out: 8.64 x 5.98. Outside Diameter: 10.35 x 7.20.
Mounting Depth/Chassis Depth: 3.35. Dimensions: 14.25 x 11.75 x 5.5 in. Weight: 6.15 lbs
Features:
Pair Hifonics ZS693 6x9" 800 Watt Car Audio Speakers
Tweeter Dome Material: Neo-Mylar Soft Dome Tweeter - Impact
Resistant Tweeter Elements
Surround:Rubber - Moisture Resistant Rubber Surround with
high Mid-Bass Impact
Cone:Alpha-Cellulose Cones - Light weight for speed and very
rigid for deep bass
Tinsel Leads:Braided - Highly conductive while remain
flexible during high power applications
Voice Coil:Pure Copper - Creates strong magnetic field with a
very thin extrusion
Voice Coil Former:Kapton - Lightweight and efficiently
dissipates heat
Spider:Epoxy infused Natural Fiber - Natural fiber allows
flexibility while the epoxy which gives strength during the manufacturing process.
Cooling System: Overcoil - Air is exchanged over the voice
coil through the spider
Crossover Type: Passive Butterworth - Smooth transition of
frequencies from midrange/midbass to the tweeter element
Frame Type: Anti-Resonant Stamped Steel Basket - Very strong
with minimal harmonics or distortions from flex or ringing
Motor: Ferrite Magnet - Creates a strong magnetic field while
remaining small enough to fit nearly every application
Connectors: Spade - Use spade connectors or solder direct for
the best connection

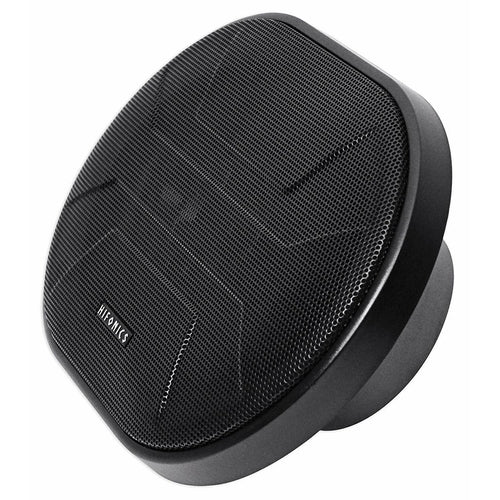

Grills: Yes - Protects the speaker from accidental damage.
Not used if speaker is mounted behind vehicle panel
Tweeter Material: Neo-Mylar Soft Dome - Great sound quality
and increased reliability
Tweeter Size: 1 inch - Clear highs while handling plenty of
power without sound harsh
Tweeter Surround Material: Kapton - Lightweight and
efficiently dissipates heat
Specifications:
RMS Power Handling
(CEA426B): 60 Watts (Per Speaker) / 120 Watts (Per Pair)
Maxx Power: 400
Watts (Per Speaker) / 800 Watts (Per Pair)
Speaker Impedance:
4 Ω
Frequency Response
+/- 3dB: 46Hz-20kHz
Sensitivity (1
watt/1 meter): 88 db
Crossover Point: 1K
Hz + 3K
Crossover Slope:
12dB
Mounting
Diameter/Cut Out: 8.64 x 5.98
Outside Diameter:
10.35 x 7.20
Mounting
Depth/Chassis Depth: 3.35
Dimensions: 14.25 x
11.75 x 5.5 in
Weight: 6.15 lbs
