IDATALINK HRN-RR-GM4
Keep your GM factory features
iDatalink's HRN-RR-GM4 wiring adapter allows you to connect an iDatalink-ready car stereo in select 2016-up Chevrolet and GMC trucks with 7" screens, working in conjunction with iDatalink's Maestro ADS-MRR module. Once connected, you'll retain the use of your steering wheel audio controls in these vehicles, as well as your warning chimes and backup camera. You'll still retain OnStar service and Bluetooth hands-free operation. You'll also be able to set up gauges on your receiver's screen to measure engine performance, tire pressure, and other vehicle metrics.
Works with the Maestro module
The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and the serial port on your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.
Installation note: The HRN-RR-GM4 adapter must be used with the iDatalink Maestro ADS-MRR module to connect a new iDatalink-compatible car stereo to your General Motors vehicle. If you plan on using this harness in a GM vehicle with a factory amp, you'll have to either bypass the amplifier or install an aftermarket amp.
Product highlights:
allows installation of a new receiver with an iDatalink port in select GM vehicles (also requires the Maestro ADS-MRR module)
retains the use of your steering wheel audio controls
retains OnStar and Bluetooth hands-free operation
displays engine performance data on touchscreen
warranty: 1 year
WHATS IN THE BOX:
15" Vehicle harness (for iDatalink Maestro)
External chime module (attached 38" harness)
OBDII harness (attached 48" harness)
3" Jumper harness
Vehicle Compatibility:
FOR Cadillac
2012 - 2014 Escalade (With factory navigation)
FOR Chevrolet
2017 - 2018 Colorado (7" Factory Radio)
2016 - 2018 Silverado 1500 (Long Box with 7" Factory Radio)
2016 - 2018 Silverado 1500 (Short Box with 7" Factory Radio)
2016 - 2018 Silverado 2500 (Long Box with 7" Factory Radio)
2016 - 2018 Silverado 2500 (Short Box with 7" Factory Radio)
2016 - 2018 Silverado 3500 (Long Box with 7" Factory Radio)
2016 - 2018 Silverado 3500 (Short Box with 7" Factory Radio)
FOR GMC
2017 - 2018 Canyon (7" Factory Radio)
2016 - 2018 Sierra 1500 (Long Box with 7" Factory Radio)
2016 - 2017 Sierra 1500 (Short Box with 7" Factory Radio)
2016 - 2018 Sierra 2500 (Long Box with 7" Factory Radio)
2016 - 2018 Sierra 2500 (Short Box with 7" Factory Radio)
2016 - 2018 Sierra 3500 (Long Box with 7" Factory Radio)
2016 - 2018 Sierra 3500 (Short Box with 7" Factory Radio)

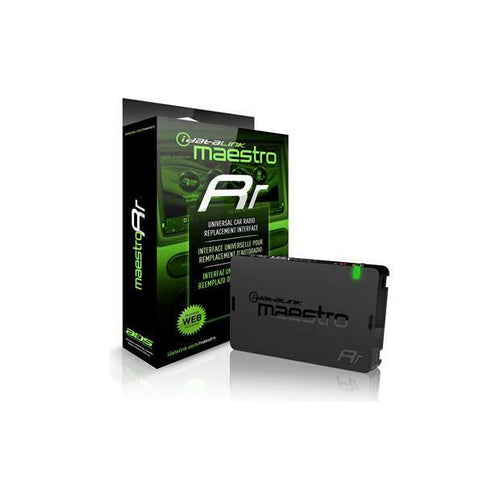

Maestro ADS-MRR Universal Radio Replacement and Steering Wheel Interface
Web-programmable radio replacement interface for integration with factory systems including steering wheel controls,
media player, hands-free telephone, voice commands, and satellite radio modules. Also displays vehicle information
(performance gauges, climate controls, battery voltage, check engine codes and more) with iDatalink-compatible radios.
Basic radio replacement features also available with non-iDatalink-compatible radios.
